All sockets can be provided with Declaration of compliance according EN 10204-2.1, Material certificate according EN 10204-3.1 and EC Declaration according machine directive 98/37/EC

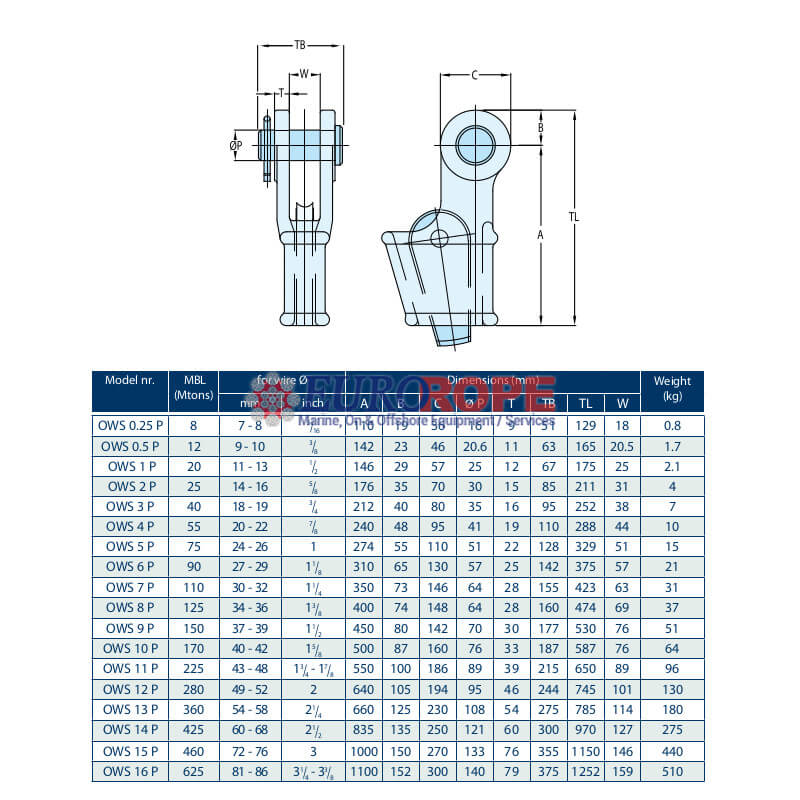

Article number, Minimum breaking load, Wire Diameter
OWS 0.25 P, MBL: 8 Ton, 7-8 mm
OWS 0.50 P, MBL: 12 Ton, 9-10 mm
OWS 1 P, MBL: 20 Ton, 11-13 mm
OWS 2 P, MBL: 25 Ton, 14-16 mm
OWS 3 P, MBL: 40 Ton, 18-19 mm
OWS 4 P, MBL: 55 Ton, 20-22 mm
OWS 5 P, MBL: 75 Ton, 24-26 mm
OWS 6 P, MBL: 90 Ton, 27-29 mm
OWS 7 P, MBL: 110 Ton, 30-32 mm
OWS 8 P, MBL: 125 Ton, 34-36 mm
OWS 9 P, MBL: 150 Ton, 37-39 mm
OWS 10 P, MBL: 170 Ton, 40-42 mm
OWS 11 P, MBL: 225 Ton, 43-48 mm
OWS 12 P, MBL: 280 Ton, 49-52 mm
OWS 13 P, MBL: 360 Ton, 54-58 mm
OWS 14 P, MBL: 425 Ton, 60-68 mm
OWS 15 P, MBL: 460 Ton, 72-76 mm
OWS 16 P, MBL: 625 Ton, 81-86 mm
