Fast Connector Socket with bolt and nut

Art. nr.: 1.6.FCS-B Category:

Fast Connector Socket with bolt and nut

Minimum breaking load: 20T – 90T
Diameter wire rope (mm): 11-13mm – 27-29mm
Diameter wire rope (inch): 7/16-1/2 inch – 1 1/8 inch
Material: Alloy cast steel
Finish: blue colour paint (Hot dipped galvanized on request)
Specially designed for fast reeving in Mobile and Crawler Crane applications
Fast connector sockets have 100% efficiency
Sockets and buttons are re-usable
All sockets can be provided with Declaration of compliance according EN 10204-2.1, Material certificate according EN 10204-3.1 and EC Declaration according machine directive 98/37/EC

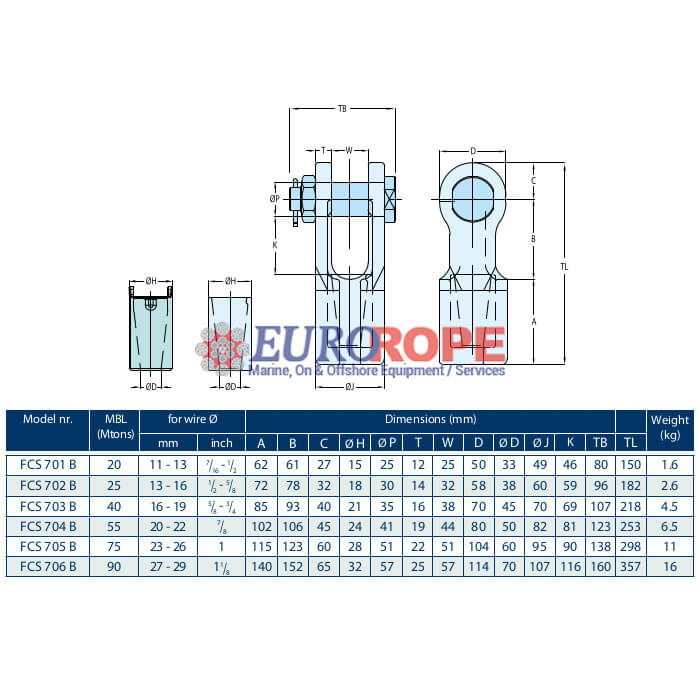

Article number, Minimum breaking load, Wire Diameter

FCS 701 B, MBL:  20 Ton,  11-13  mm
FCS 702 B, MBL:  25 Ton,  13-16  mm
FCS 703 B, MBL:  40 Ton,  16-19  mm
FCS 704 B, MBL:  55 Ton,  20-22  mm
FCS 705 B, MBL:  75 Ton,  23-26  mm
FCS 706 B, MBL:  90 Ton,  27-29  mm
