• Material : bow and pin alloy steel, Grade 8, Polar quality, quenched and tempered
• Safety factor : MBL equals 5 x WLL
• Finish : body painted white, pin painted green
• Temperature Range : -60°C up to +200°C
• Note : for in-line use only. Supplied without wires; design your own wiring plan.

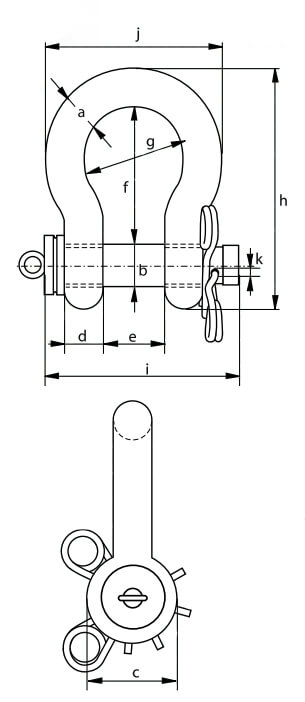

| Working Load Limit | Diameter Bow | Diameter Pin | Diameter Eye | Width Eye | Width Inside | Length Inside | Width Bow | Length | Length Bolt | Width | Diameter | Weight |
| t | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm | K mm | kg |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 5.5 | 1.77 |
| 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 6.5 | 3.66 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 184 | 147 | 6.5 | 4.91 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 6.5 | 8.19 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 8.5 | 14.22 |
| 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 269 | 238 | 8.5 | 19.85 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 330 | 310 | 8.5 | 39.59 |
| 85 | 75 | 83 | 162 | 73 | 127 | 329 | 190 | 527 | 380 | 340 | 8.5 | 62 |
