G-2160 / S-2160 Wide Body Shackle

Art. nr.: G-2160 / S-2160 Category: Wide Body Shackles

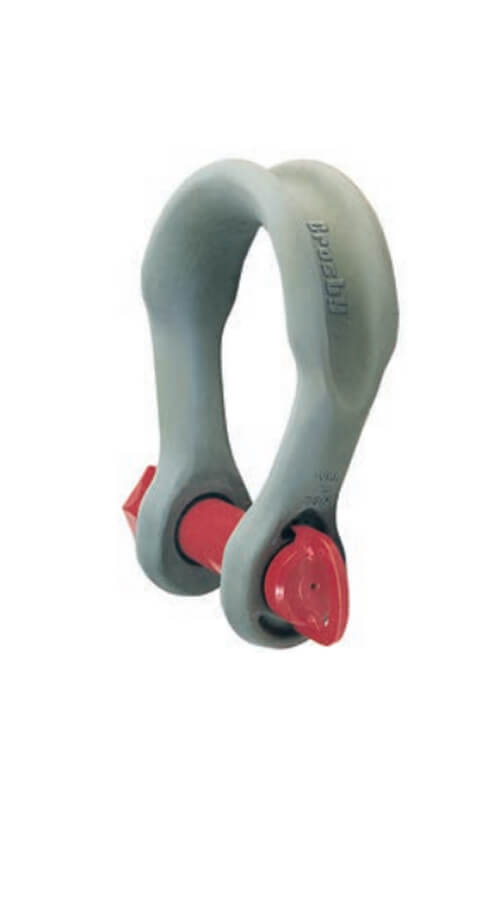

G-2160 / S-2160 Wide Body Shackle

Wide Body Shackle
• All sizes Quenched and Tempered for maximum strength.
• Forged alloy steel from 7 thru 300 metric tons.
• Cast alloy steel from 400 thru 1550 metric tons.
• Proof tested as follows:
• 7 thru 75 metric tons and 200 thru 300 metric tons: 2 x WLL.
• 125 metric tons: 1.6 x WLL.
• 400 metric tons and higher: 1.33 x WLL.
• All ratings are in metric tons, embossed on side of bow.
• G-2160, (7 thru 55t), are Hot Dip Galvanized and pins are painted red.
• G-2160, (75t and larger), bows are furnished Dimetcoted, and pins are Dimetcoted,
then painted red.
• S-2160 bows and pins are painted red.
• Shackles, 30t and larger, are RFID EQUIPPED.
• Can be used to connect Synthetic Web Slings, Synthetic Round Slings or Wire Rope
Slings.
• Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and
eliminates need for a thimble.
• Increases usable sling strength minimum of 15% and greatly improves life of wire rope
slings.

Wide Body Shackle certification

• Approved for use at -40 degrees C (-40 degrees F) to 204 degrees C (400 degrees F).
• Bow and bolt are certified to meet charpy impact testing of 42 joules (31 ft-lbs.) min.
avg. at -20 degree C (-4 degree F).
• All 2160 shackles are individually proof tested and magnetic particle inspected.
Crosby certification available at time of order.
• Shackles requiring ABS, Lloyds and other certifications are available upon special
request and must be specified at time of order.
• Type approved and certification to DNV Rules for Certification of Lifting Appliances, and
are produced in accordance with DNV MSA requirements. Databook is provided that
includes required documents.
• Serialization / Identification
• Material Testing (Physical / Chemical / Charpy)
• Proof Testing
• Look for the Red Pin® . . . the mark of genuine Crosby quality.

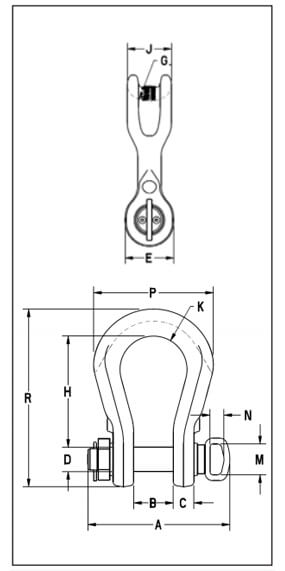

WLL (t)*	Stock No.		Weight (kg)	Dimensions (mm)
WLL (t)*	G-2160	S-2160	Weight (kg)	A	B +/- 6.35	C	D +/- .5	E	G	H	J	K	M	N	P	R	Effective Body Diameter
7	1021256	1021548	1.81	105	31.8	17.5	22.4	46.2	31.8	90.4	40.6	31.8	–	–	104	149	53.3
12.5	1021265	1021557	4.54	137	42.9	23.4	28.7	60.5	34.8	118	54.1	41.4	–	–	140	194	61.0
18	1021274	1021566	6.80	170	51.6	29.5	35.1	68.3	38.1	148	63.5	50.8	–	–	172	238	71.1
30	1021283	1021575	11.34	195	60.2	35.1	41.4	88.9	63.5	176	79.5	63.5	–	–	216	289	104
40	1021285	1021584	20.9	236	73.2	42.9	50.8	102	44.4	205	95.3	76.2	–	–	270	346	91.4
55	1021287	1021593	32.21	263	82.6	50.8	57.2	118	66.8	238	114	88.9	–	–	311	397	109
75	1022101	–	51	382	105	53.8	69.9	136	95.3	293	127	92.5	102	45.7	312	474	160
125	1022110	–	87	450	130	67.6	80.0	165	95.3	365	150	110	102	45.7	393	584	173
200	1022118	–	191	491	150	74.7	105	214	133	480	217	138	102	45.7	520	773	241
300	1022127	–	365	574	187	97.5	133	267	156	600	264	160	102	45.7	610	957	290
400	1021334	–	518	772	220	131	160	320	203	575	320	185	102	45.7	690	985	363
500	1021343	–	653	849	250	146	180	340	205	630	340	225	102	45.7	790	1085	376
600	1021352	–	967	916	275	158	200	394	330	700	370	247	146	57.2	865	1200	516
700	1021361	–	1170	990	300	167	215	433	223	735	400	270	146	57.2	940	1275	422
800	1021354	–	1372	1059	325	185	230	449	248	750	420	277	146	57.2	975	1323	457
900	1021389	–	1712	1112	350	198	250	478	330	757	440	293	146	57.2	1025	1387	569
1000	1021370	–	1850	1169	380	212	270	508	261	760	460	308	146	57.2	1075	1405	490
1250	1021272	–	2588	1278	432	233	300	573	354	930	530	323	–	–	1175	1660	620
1550	1021281	–	3650	1588	465	282	320	616	318	1075	580	338	–	–	1316	1896	693

*NOTE:
WLL ≤ 25 ton → PL = 2 · g · WLL kN
WLL > 25 ≤ 180 ton → PL = 1,22 · g · WLL + 200 kN
WLL > 180 ton → PL = 1,33 · g · WLL kN
