• All Alloy construction.
• Durable vinyl cover that:
• Protects sling at eye
• Keeps sling positioned correctly on spool.
• Design Factor of 5 to 1.
• Connects Synthetic Web and Synthetic Round Slings to conventional Crosby
hardware including:
• 320N Eye Hook
• Additional Crosby Grade 8 Fittings
• Master Links
• Rings
• Shackles
• Makes a field assembled bridle quick and easy.
• No retaining pin to snag sling material.
• Increased radius of spool gives wider sling bearing surface resulting in an increased
area for load distribution, thus:
• Increasing Synthetic Sling efficiency as compared to standard anchor and chain
shackle bows and conventional eye hooks. This allows 100% of the slings rated
Working Load Limit to be achieved.
• Allowing better load distribution on internal fibers.
• Replacement kit for spool and web cover available.
• Designed for use with Type III (Eye & Eye), Class 7, 2 ply webbing & Synthetic
Round Slings. Also accommodates single ply and endless slings.

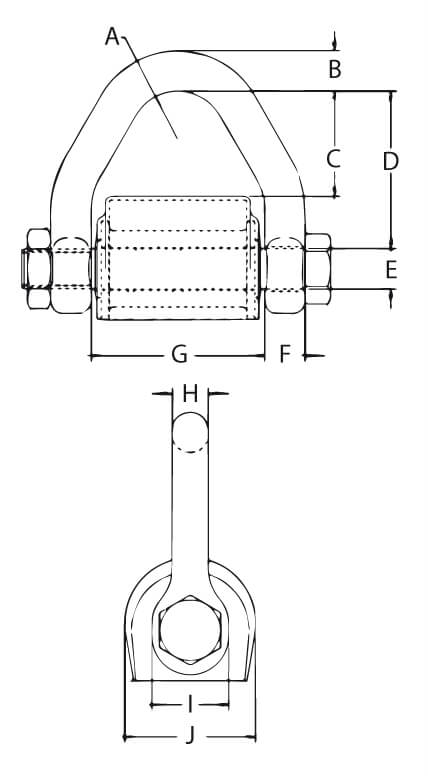

| Round Sling Size (No.) | Web Slings* | WLL (t) † | S-280 Stock No. | Weight (kg) | Dimensions (mm) | |||||||||||
| Webbing Width (mm) | Eye Width (mm) | Ply | A | B | C | D | E | F | G | H | I | J | ||||
| 1 & 2 | 50 | 50 | 2 | 2.95 | 1021681 | 0.68 | 19.1 | 15.7 | 41.4 | 62.0 | 16.0 | 15.7 | 68.5 | 14.2 | 30.2 | 51.5 |
| 3 | 75 | 35 | 2 | 4.08 | 1021960 | 0.86 | 19.1 | 17.5 | 27.9 | 51.0 | 19.1 | 17.5 | 55.5 | 15.2 | 35.1 | 59.5 |
| 4 | 100 | 50 | 2 | 5.67 | 1021700 | 1.32 | 19.1 | 20.6 | 42.2 | 65.0 | 22.4 | 19.1 | 68.5 | 17.5 | 41.1 | 62.5 |
| 5 & 6 | 150 | 75 | 2 | 7.70 | 1021709 | 2.31 | 25.4 | 25.4 | 62.5 | 89.0 | 25.4 | 22.4 | 93.5 | 22.4 | 47.8 | 72.0 |
* Designed for use with Type III, (Eye & Eye), Class 7, 2 Ply web slings. For 3” and larger webbing width, tapered eye is required. † Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate strength is 5 times the Working Load Limit.
