S-252 Bolt Type Sling Shackle

Category:
• Shackles available in size 3-1/4 to 50 metric tons.
• All Alloy construction.
• Design factor of 5 to 1.
• Each shackle has a Product Identification Code (PIC) for material traceability along with
a Working Load Limit and the name Crosby forged into it.
• Increased radius of bow gives wider sling bearing surface resulting in an increased area
for load distribution, thus:
• Increasing Synthetic Sling efficiency as compared to standard anchor and chain
shackle bows and conventional hooks. This allows 100% of the sling’s rated
Working Load Limit to be achieved.
• Allows better load distribution on internal fibers.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility,
design factor, proof load and temperature requirements. Importantly, these shackles
meet other critical performance requirements including fatigue life, impact properties
and material traceability, not addressed by ASME B30.26.
• Shackles available in both a Screw Pin and Bolt, Nut and Cotter Pin configuration.
• Bolt (Pin) has a larger diameter that provides better load distribution.
• Look for the Red Pin®… the mark of Genuine Crosby quality.

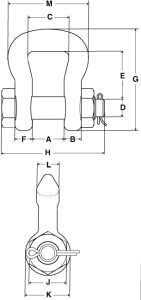

Web Sling Eye Width (mm)Round SLing Size (No.)WLL (t)*Stock No.Weight (kg)ABCDEFGHJKLM
251 & 23-1/410204850.6426.914.735.119.138.111.286.093.528.438.119.168.5
353 & 46-1/210204961.0931.819.144.522.447.812.710510833.346.025.486.0
505 & 68-3/410205071.8635.122.457.025.471.514.214012038.153.028.4106
757 & 812-1/210205183.6341.128.482.531.877.519.116114947.866.535.1143
1009 & 1020-1/210205297.6754.035.111438.113322.424018357.079.044.5191
12511 & 1235102054015.963.544.514051.016128.429223676.010657.0233
1501350102055126.176.054.016557.019631.834923486.012170.0279

* Maximum Proof Load is 2.5 times the Working Load Limit. Minimum Ultimate strength is 5 times the Working Load Limit.
