Alloy Screw Pin Wide Body Shackle
• Capacities of 7, 12.5 and 18 metric tons.
• Quenched and Tempered for maximum strength.
• Forged Alloy Steel.
• Available in galvanized and self colored finished.
• Individually proof tested and magnetic particle inspected. Crosby
certification available at time of order.
• Meets or exceeds all requirements of ASME B30.26 including
identification, ductility, design factor, proof load and temperature
requirements. Importantly, these shackles meet other critical
performance requirements including fatigue life, impact properties and
material traceability, not addressed by ASME B30.26.
• Look for the Red Pin® . . . the mark of genuine Crosby quality.

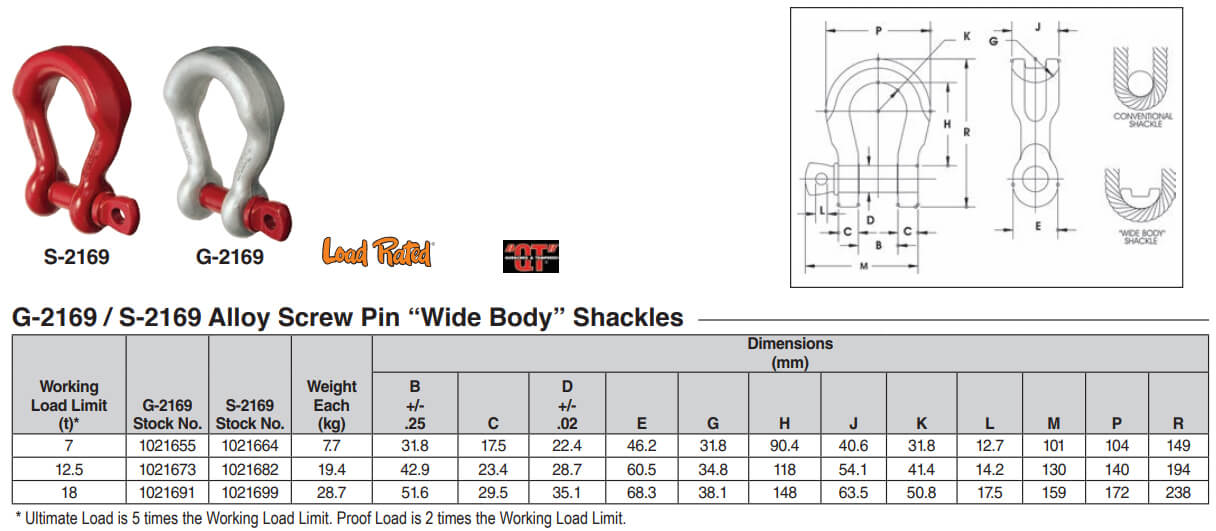

| WLL (t)* | G-2169 Stock No. | S-2169 Stock No. | Weight (kg) | Dimensions (mm) | |||||||||||
| B +/- .25 | C | D +/- .02 | E | G | H | J | K | L | M | P | R | ||||
| 7 | 1021655 | 1021664 | 7.7 | 31.8 | 17.5 | 22.4 | 46.2 | 31.8 | 90.4 | 40.6 | 31.8 | 12.7 | 101 | 104 | 149 |
| 12.5 | 1021673 | 1021682 | 19.4 | 42.9 | 23.4 | 28.7 | 60.5 | 34.8 | 118 | 54.1 | 41.4 | 14.2 | 130 | 140 | 194 |
| 18 | 1021691 | 1021699 | 28.7 | 51.6 | 29.5 | 35.1 | 68.3 | 38.1 | 148 | 63.5 | 50.8 | 17.5 | 159 | 172 | 238 |
*NOTE:
WLL ≤ 25 ton → PL = 2 · g · WLL kN
WLL > 25 ≤ 180 ton → PL = 1,22 · g · WLL + 200 kN
WLL > 180 ton → PL = 1,33 · g · WLL kN
