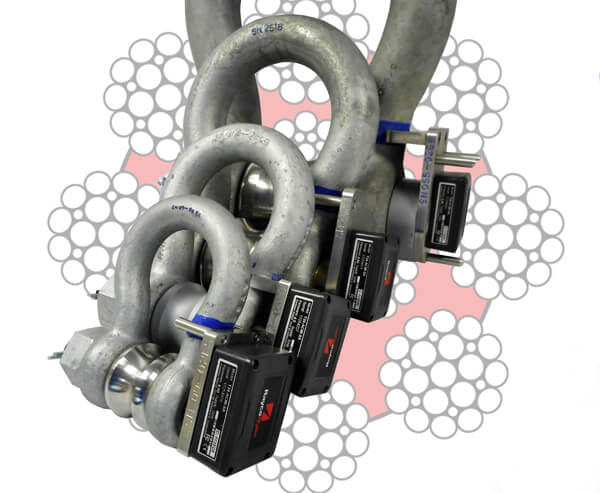

Eco Shackle 6.5 ton to 55 ton – Euroload

Eco Shackle Design Range 6.5 to 55 tonnes. Van Beest G-4163 bow.

This range of load shackles has been designed to give very economically priced, high accuracy, high function solution to load monitoring using small shackles.

ELT-24 new long range telemetry transmitter and receiver handset.
Optional: handset to read multiple shackles, data logging up to 100 shackles in one area.
Contact us for the full capability of the new ELT-24 range of telemetry electronics.

Eco Shackle Standard features

  • 2 x AA battery powered transmitter
  • Long battery life up to 5 years
  • Remote power down
  • Up to 200 updates per second
  • IP67 ingress protection
  • Min 5:1 factor of safety
  • Fully¬†stainless steel load pin
  • Down hole strain gauged
  • Gel filled
  • Protective load bobbin
  • Supplied c/w Van Beest G-4163 bow

Sizes available from stock, 6.5, 8.5, 9.5, 12, 13.5, 17, 25, 35, 55 tonnes.

    Ask for a free quote
