The Hi-Force ToughLift jacking system offers users the easiest and safest method of lifting material haulers in the
mining and construction industry and locomotives in the railway industry, when critical maintenance and
breakdown repair work is required. Suitable for lifting even the largest earth haulers in the world, the Hi-Force
ToughLift is available in 50, 100, 150 and 200 tonne lifting capacities.
With the introduction of the TLA20027 to the range, lifting heights have been increased to 685mm without the need
for extensions and all air driven models are operated by a 6 bar air driven motor.
The Hi-Force ToughLift models incorporate a 3-speed pump unit, giving faster advance and retract times,
both under load and no load conditions. All models are fitted with a load tonnage gauge as standard and new low
maintenance 3-piece handle design to increase manoeuvrability. To aid with lifting, the models come with
dedicated lifting points to keep the unit balanced and secure while lifting. A newly designed manifold and muffler
allows for easier maintenance and better flow, improving the performance on all air driven ToughLift models.
The redesigned wheel position on the frame and wear-resistant steel base plate offer better ground clearance,
making the Hi-Force ToughLift suitable for use on varied terrains. Pivot plates fitted on all models allow the cylinder
and tank unit to articulate separately, thus retaining the load on the base plate and preventing the force from
being transferred to the wheels. New optional accessory options include load block tool box and pneumatic tyres
available on 100, 150 and 200 tonne models.
All Hi-Force ToughLift jacking systems are supplied fitted as standard with a hardened steel lifting saddle.
50 tonne models come with a patented “snap latch” handle assembly for easy positioning and transportation
and a patented jacking system designed for increased safety, enabling them to be easily positioned,
in the tightest of spaces, to ensure location into the correct and exact lifting and jacking position.
For ease of use and safety, all Hi-Force ToughLift models are operated via a 5 metre remote, push button hand
pendant controller to ensure the operator has precise control over the lifting operation from a safe distance.
All Hi-Force units come with pneumatic pilot valves with pendant control and 50 tonne models also come with
solenoids as a standard option. The 100, 150 and 200 tonne models can have solenoids and electric driven pump
as options available upon request.
The Hi-Force ToughLift is built with the cylinder as a one-piece design making it effective against side loading and
allowing for quicker turnaround times, should the unit require servicing. Fitted with large diameter wheels and heavy
duty solid tyres as standard, all ToughLift models are narrow in width and have the smallest footprint area in the industry.

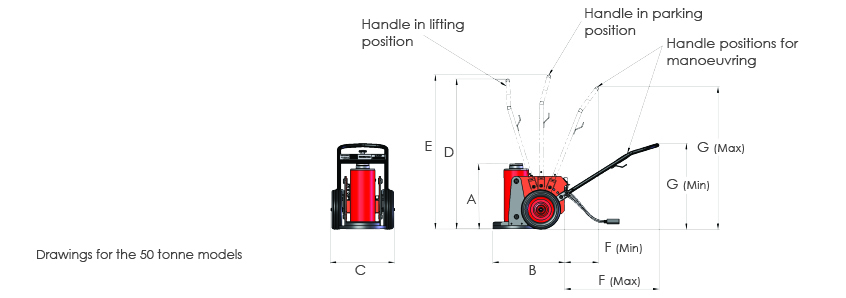

|MODEL NO.||CAPACITY TONNES||POWER SUPPLY||STROKE MM||WEIGHT KG||MAX ADDITIONAL STACK MM||DIMENSIONS IN MM|
|A||B||C||D||E||F MIN-MAX||G MIN-MAX|
|TL050A255||50||6-Bar air driven||254||160||680||455||660||560||1440||1440||380-1000||700-1300|
|TLA10016||100||6-Bar air driven||405||289||480||665||1130||652||831||356-854||465-1605||–|
|TLA10021||100||6-Bar air driven||530||319||180||843||1130||652||946||356-854||465-1605||–|
|TLA15015||150||6-Bar air driven||390||313||485||665||1130||652||835||356-854||465-1605||–|
|TLA15020||150||6-Bar air driven||520||349||180||843||1130||652||963||356-854||465-1605||–|
|TLA20015||200||6-Bar air driven||381||373||500||660||1130||652||830||356-854||465-1605||–|
|TLA20027||200||6-Bar air driven||685||453||180||964||1130||652||1085||356-854||465-1605||–|
Note: 100, 150 and 200 tonne electric driven Hi-Force ToughLift jacking systems available on request
