The HEP1 range of two stage electric driven hydraulic mini pumps,
offers the smallest and lightest weight, electric powered pump in the Hi-Force product range.
Available with a choice of 110 volt or 240 volt single phase electric motor, both models feature an electric solenoid operated valve,
complete with remote hand pendant controller and 3 metre control cable as standard.
The two stage design of these pumps incorporates an automatic changeover from low to high pressure ensuring
that an optimum pressure and flow rate combination is achievable from an extremely compact pump.

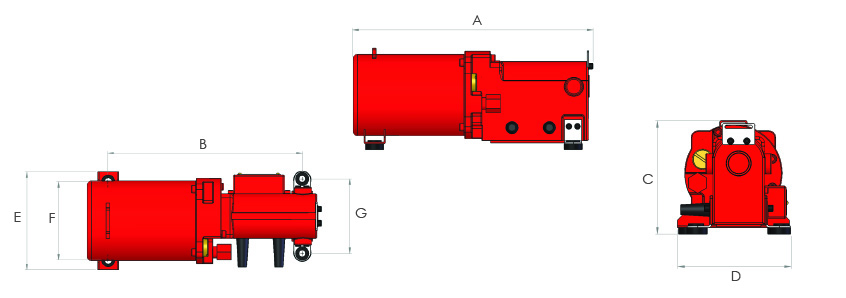

| MODELNUMBER | MOTORVOLTAGE | MAXIMUMPRESSUREBAR | MAXIMUMFLOWRATEPERMIN | VALVETYPE | USABLEOILCAPLITRES | WEIGHTKG | DIMENSIONS IN MM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1ST STAGE | 2ND STAGE | A | B | C | D | E | F | G | ||||||
| HEP1211S | 110V-1Ph | 700 | 2 | 0.2 | 2-way | 0.8 | 7.5 | 333 | 269 | 140 | 139 | 138 | 110 | 105 |
| HEP1212S | 240V-1Ph | 700 | 2 | 0.2 | 2-way | 0.8 | 7.5 | 333 | 269 | 140 | 139 | 138 | 110 | 105 |
