HPF Range

Category:

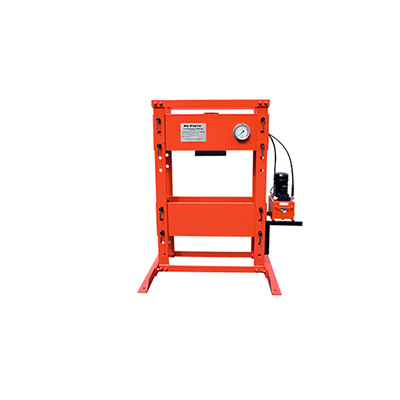

The HPF range of workshop presses offers a choice of 25 models with either single acting or double acting cylinders
and manually operated, air powered or electric powered pumps. Floor presses incorporate an adjustable work table
and dual scale pressure gauge.

Factory mounted optional accessories include a mechanical bed winch for easy adjustment of the work table,
rolling head kit and multi-position V-blocks. All presses are supplied completely assembled, ready for use. Hi-Force
workshop presses are manufactured to the highest quality standards, and are suitable for the most demanding jobs.

  • Choice of manual, air or electric powered pumps
  • Supplied complete with pressure gauge
  • Other configurations available on request
  • Optional extras such as bed winch and V-blocks available
HPF Range

SPECIFICATIONS HPF Range

MODEL NO.CAPACITY TONNESSTROKE MMCYLINDER MODEL NO.CYLINDER PRINCIPLEPUMP MODEL NO.PUMP OPERATONWEIGHT KG
HPF102010250HSS1010single actingHP110hand operated95
HPF103010250HSS1010single actingAHP1120air powered85
HPF252025250HSS2510single actingHP227hand operated145
HPF253025250HSS2510single actingAHP1120air powered138
HPF254125250HSS2510single actingHEP103341electric driven 110 V160
HPF254225250HSS2510single actingHEP103342electric driven 240 V160
HPF254425250HSS2510single actingHEP207314electric driven 415 V160
HPF5020S50330HSS5013single actingHP257hand operated470
HPF5020D50330HDA5013double actingHP252Dhand operated500
HPF5030S50330HSS5013single actingAHP1121air powered505
HPF5030D50330HDA5013double actingAHP1141air powered505
HPF5041S50330HSS5013single actingHEP207311electric driven 110 V505
HPF5041D50330HDA5013double actingHEP207411electric driven 110 V481
HPF5042S50330HSS5013single actingHEP207312electric driven 240 V512
HPF5042D50330HDA5013double actingHEP207412electric driven 240 V518
HPF5044S50330HSS5013single actingHEP207314electric driven 415 V518
HPF5044D50330HDA5013double actingHEP207414electric driven 415 V518
HPF10020100330HDA10013double actingHP245Dhand operated1011
HPF10030100330HDA10013double actingHAP21042air powered1029
HPF10041100330HDA10013double actingHEP207421electric driven 110 V1043
HPF10042100330HDA10013double actingHEP207422electric driven 240 V1043
HPF10044100330HDA10013double actingHEP207424electric driven 415 V1043
HPF20041200305HDA20012double actingHEP310421electric driven 110 V3250
HPF20042200305HDA20012double actingHEP310422electric driven 240 V3250
HPF20044200305HDA20012double actingHEP310424electric driven 415 V3250

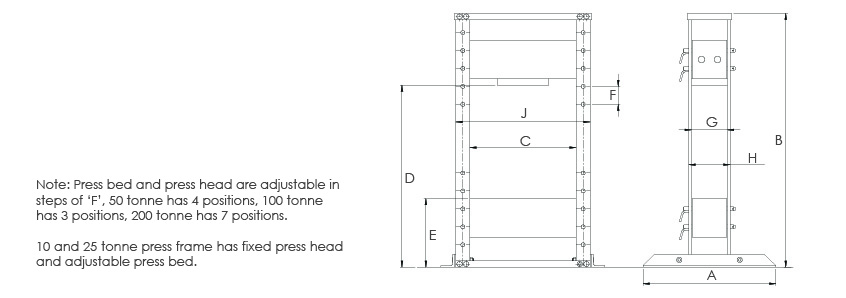

DIMENSIONS IN MM

PRESS RANGECAPACITY TONNESFRAME DIMENSIONS IN MM
ABCD (MIN)D (MAX)E (MIN)E (MAX)FGHJ
HPF1000107421448508125812582601010150–152660
HPF2500257421448508125812582601010150–152660
HPF50005010002055800114015603958151402582981000
HPF10000100100019801000109013705508301403383881240
HPF200002001200250012501815213561015101503304101750

BED WINCH

SUFFIXDESCRIPTION
BWBed winch, suitable for 50 and 100 tonne models

MULTI-POSITION V-BLOCKS

MODEL NO.CAP. PER SET TONNESDIMENSIONS IN MM
ABCDEFGH
HVB250010 – 15204154204515545208
HVB5000503652652550190602510
HVB100001004253253560265853510
