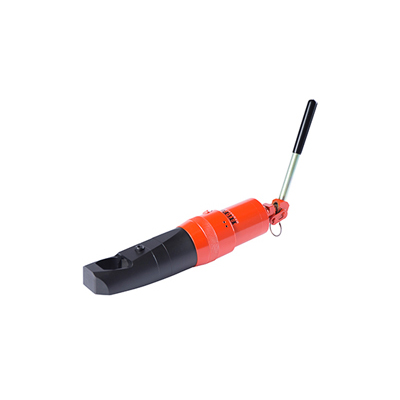

The HMNS range of hydraulic nut splitters offers a choice of 3 models suitable for hexagon nut AF sizes from 17 to
50mm (M10 to M33 bolt sizes). All models have an angled body design to provide the necessary clearance on
flanges and flat surfaces. The revolutionary design incorporates a hardened steel linkage that ensures the blades
cutting edge is kept parallel to the nut throughout the splitting process which improves operational efficiency and
more importantly, blade life. Designed to easily split corroded nuts up to RC44 hardness, Hi-Force nut splitters offer
the ideal ‘cold cut’ solution for removing worn or corroded fasteners, especially in applications where ‘hot work’
permits are not allowed. All models incorporate an integral hydraulic pump with multi-positional lever for even
greater versatility.
| MODEL NO. | HEXAGON AF SIZES | BOLT SIZES | WEIGHT KG | DIMENSIONS IN MM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | IMPERIAL | A | B | C | D | E | F | ||
| HMNS104 | 17 – 32 | 11/16″ – 1 1/4″ | M10 – M22 | 1/2″ – 3/4″ | 5.8 | 64 | 88 | 12.5 | 30 | 380 | 455 |
| HMNS110 | 32 – 41 | 1 1/4″ – 1 5/8″ | M22 – M27 | 3/4″ – 1″ | 7.9 | 78 | 101 | 20 | 37 | 440 | 540 |
| HMNS200 | 41 – 50 | 1 5/8″ – 2″ | M27 – M33 | 1″ – 1 1/4″ | 13.6 | 94 | 112 | 21 | 43 | 471 | 566 |
