HFS H Range
HFS-H hydraulic flange spreaders provide the ideal solution for safely opening pipe flanges in the marine and oil &
gas industry. Available in capacities from 0 – 4.5 tonnes and 0 – 10 tonnes, these models offer the user the capability
of opening flanges up to 2 x 57 mm or 2 x 92 mm thick respectively. Hi-Force flange spreaders can be operated
individually, or as a pair when opening large flanges using a standard pump and connecting hose. With Hi-Force
flange spreaders you are only minutes away from safely opening the toughest flanges without the risk of sparks
caused by hammer blows, chisels and flying wedges.
- Suitable for fitment onto flanges with a maximum stud bolt size of 1 5/8″ (41 mm)
SPECIFICATIONS HFS H Range
| MODEL NO. | CAPACITY TONNES | STROKE MM | OIL CAPACITY CM3 | MAX FLANGE THICKNESS MM | STUD SIZE MM | STANDARD WEDGE MM | WEIGHT KG |
|---|
| HFS50H | 4.5 | 75 | 48 | 2 x 57 | 19 – 29 | 3 – 29 | 5.0 |
| HFS100H | 10 | 56 | 81 | 2 x 92 | 32 – 41 | 3 – 29 | 11.6 |

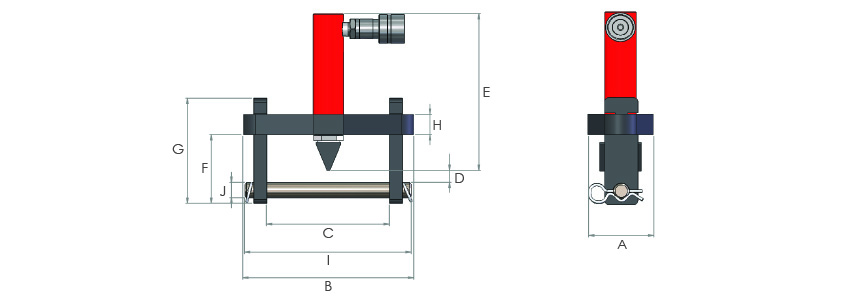

DIMENSIONS IN MM
| MODEL NO. | DIMENSIONS IN MM |
|---|
| A | B | C MIN | C MAX | D | E | F | G | H | I | J |
|---|
| HFS50H | 76 | 210 | 61 | 155 | 10 | 192 | 69 | 129 | 25 | 206 | 18 |
| HFS100H | 108 | 290 | 61 | 224 | 30 | 165 | 89 | 178 | 38 | 273 | 31 |
