The HVL pancake cylinder range combines a very low closed height with a 6mm stroke, providing a precise adjusting and lifting force in very confined work areas. Ideally suited for applications requiring alignment of machinery, turbines, heavy structures etc. All models are single acting, load return design. The base of all HVL cylinders must be fully supported during use.
Working pressure 700 bar.
| MODEL NO. | CAPACITY TONNES | STROKE MM | OIL CAP. CM3 | CYL. EFF. AREA CM2 | WEIGHT KG |
|---|---|---|---|---|---|
| HVL10 | 10 | 6 | 9 | 14.4 | 1.6 |
| HVL20 | 20 | 6 | 17 | 28.6 | 2.6 |
| HVL30 | 32 | 6 | 27 | 45.6 | 3.0 |
| HVL50 | 50 | 6 | 43 | 71.3 | 7.2 |
| HVL100 | 104 | 6 | 88 | 146.5 | 15.6 |

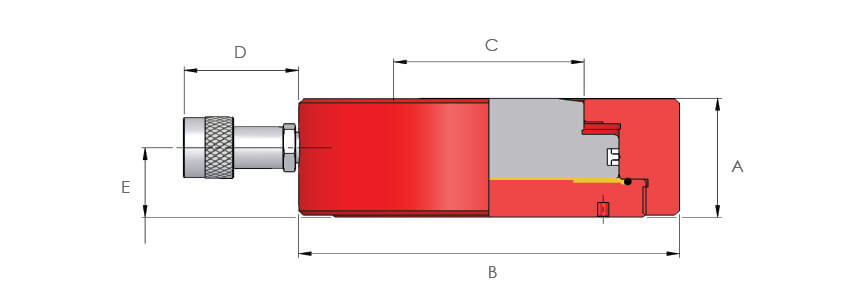

| MODEL NO. | A | B | C | D | E |
|---|---|---|---|---|---|
| HVL10 | 28 | 87 | 38 | 111 | 16.0 |
| HVL20 | 32 | 104 | 52 | 111 | 19.0 |
| HVL30 | 34 | 120 | 60 | 111 | 19.5 |
| HVL50 | 45 | 158 | 75 | 111 | 29.0 |
| HVL100 | 65 | 200 | 100 | 76 | 37.0 |
