HSS Range

Category:

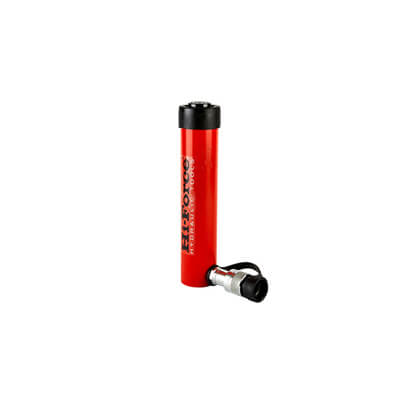

The HSS single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the HSS range the most versatile and adaptable multi-purpose cylinders available. Major user industries include power generation, railways, steelworks, mining, shipyards and oil & gas.

  • Single assisted return
  • Nitrocarburised piston rod
  • Low friction bearing surfaces
  • Anti-extrusion seals
  • Collar threads withstand full load
  • Piston rod thread on all models up to 30 tonnes
  • Base mounting holes on all models (except HSS308)
  • Optional piston rod saddles
  • Collar thread protector supplied as standard

Working pressure 700 bar.

SPECIFICATIONS

MODEL NO.CAPACITY TONNESSTROKE MMOIL CAP. CM3CYL. EFF. AREA CM2WEIGHT KG
HSS514.525166.41.0
HSS524.550326.41.2
HSS534.575486.41.4
HSS544.5100646.41.5
HSS554.5125806.41.8
HSS574.51761136.42.0
HSS594.52271466.42.4
HSS10110253614.41.8
HSS10210568114.42.4
HSS1041010014414.43.0
HSS1061015021714.44.2
HSS1081020629714.45.0
HSS10101025036114.45.4
HSS10121030544014.46.2
HSS15214.55010120.33.4
HSS15414.510020320.35.0
HSS15614.515030420.36.6
HSS151014.525050720.38.8
HSS252255117834.96.5
HSS2542510235634.98.0
HSS2562515052434.99.6
HSS2582520370934.911.2
HSS25102525087434.912.6
HSS251425356124234.916.8
HSS251825457159734.921.4
HSS3082920586041.918.6
HSS502505136471.313.0
HSS5045010272871.316.8
HSS50650152108471.320.0
HSS50850203144871.323.2
HSS501350330235471.333.6
HSS756731521561102.731.0
HSS10041091021565153.441.6
HSS10061091532347153.449.8
HSS100101092543896153.465.5

DIMENSIONS IN MM

MODEL NO.ABCDEFGH
HSS5110738241 1/2″-16un28M62519.0
HSS5213238241 1/2″-16un28M62519.0
HSS5315738241 1/2″-16un28M62519.0
HSS5418238241 1/2″-16un28M62519.0
HSS5520738241 1/2″-16un28M62519.0
HSS5725838241 1/2″-16un28M62519.0
HSS5930838241 1/2″-16un28M62519.0
HSS10110057352 1/4″-14un27M84019.0
HSS10213157352 1/4″-14un27M84019.0
HSS10417557352 1/4″-14un27M84019.0
HSS10622557352 1/4″-14un27M84019.0
HSS10828157352 1/4″-14un27M84019.0
HSS101032557352 1/4″-14un27M84019.0
HSS101237957352 1/4″-14un27M84019.0
HSS15215470412 3/4″-16un39M104819.0
HSS15420470412 3/4″-16un39M104819.0
HSS15625470412 3/4″-16un39M104819.0
HSS151035470412 3/4″-16un39M104819.0
HSS25217486543 5/16″-12un49M126025.0
HSS25422586543 5/16″-12un49M126025.0
HSS25627386543 5/16″-12un49M126025.0
HSS25832486543 5/16″-12un49M126025.0
HSS251037486543 5/16″-12un49M126025.0
HSS251448086543 5/16″-12un49M126025.0
HSS251861186543 5/16″-12un49M126025.0
HSS308374102573 5/16″-12un50––50.0
HSS502150127795″-12un55M128520.0
HSS504201127795″-12un55M128520.0
HSS506251127795″-12un55M128520.0
HSS508302127795″-12un55M128520.0
HSS5013429127795″-12un55M128520.0
HSS756272146955 3/4″-12un45M1211531.5
HSS10042231851146 7/8″-12un50M1214632.0
HSS10062741851146 7/8″-12un50M1214632.0
HSS100103751851146 7/8″-12un50M1214632.0
