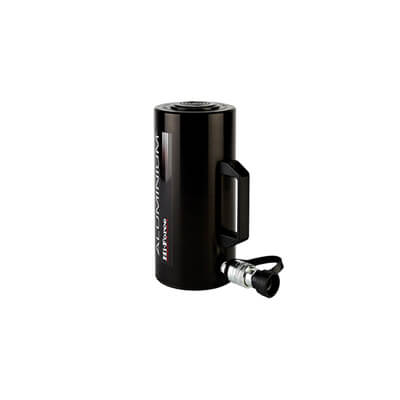

The HAS range of single acting, lightweight, aluminium cylinders is specifically designed for applications where weight and ease of positioning are features of prime importance. With an average weight of approximately 50% of comparable capacity steel construction cylinders, all models are supplied with a hard anodised, wear resistant, piston rod and cylinder body and a steel cylinder base protection plate. Available lifting capacities range from 32 to 110 tonnes capacity, at maximum working pressure of 700 Bar. All models are commonly used in a wide variety of industrial applications in shipyards, steel mills, construction and power plants. Other capacities and stroke length options available on request.
| MODEL NO. | CAPACITY TONNES | STROKE MM | OIL CAP. CM3 | CYL. EFF. AREA CM2 | WEIGHT KG |
|---|---|---|---|---|---|
| HAS306 | 32 | 152 | 672 | 44.2 | 6.0 |
| HAS506 | 51 | 152 | 1077 | 70.9 | 9.0 |
| HAS1006 | 110 | 152 | 2340 | 153.9 | 23.0 |

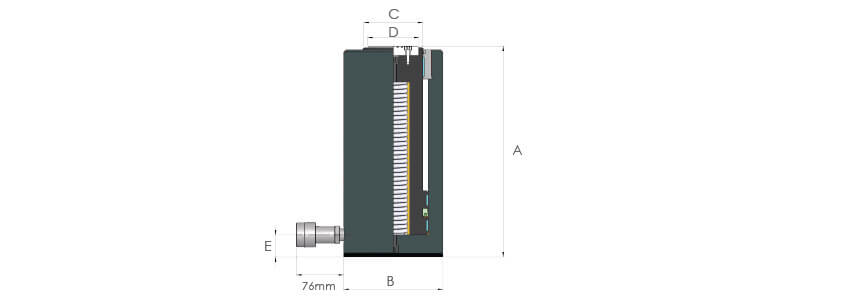

| MODEL NO. | A | B | C | D | E |
|---|---|---|---|---|---|
| HAS306 | 282 | 104 | 60 | 50 | 20 |
| HAS506 | 287 | 135 | 80 | 70 | 25 |
| HAS1006 | 317 | 195 | 110 | 100 | 35 |
