For larger sizes, see Classic Grade 8.
Fulfills requirements in:
EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
Safety factor 4:1

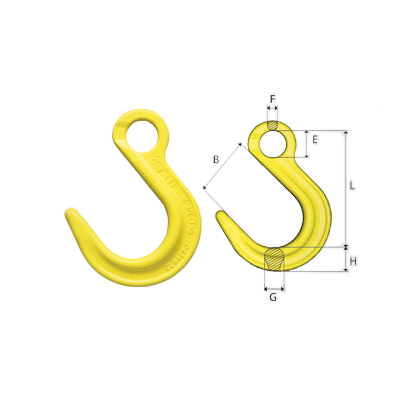

All dimensions in mm
| Part no | Code | WLL t | L | B | E | F | G | H | Weight kgs |
|---|---|---|---|---|---|---|---|---|---|
| Z100853 | OKE-7/8-10 | 2.6 | 124 | 63 | 28 | 12 | 21 | 26 | 0.755 |
| Z100854 | OKE-10-10 | 4.0 | 151 | 76 | 34 | 15 | 26 | 30 | 1.4 |
| Z100855 | OKE-13-10 | 6.8 | 184 | 90 | 44 | 19 | 33 | 39 | 2.769 |
| Z100898 | OKE-16-10 | 10.3 | 218 | 102 | 56 | 23 | 40 | 46 | 4.934 |
| Z101340 | OKE-20-10 | 16.0 | 247 | 114 | 60 | 27 | 46 | 60 | 7.174 |
| Z101341 | OKE-22-10 | 20.0 | 275 | 120 | 64 | 31 | 60 | 70 | 11.25 |
| Z101342 | OKE-26-10 | 27.3 | 300 | 113 | 70 | 35 | 64 | 77 | 16.04 |
