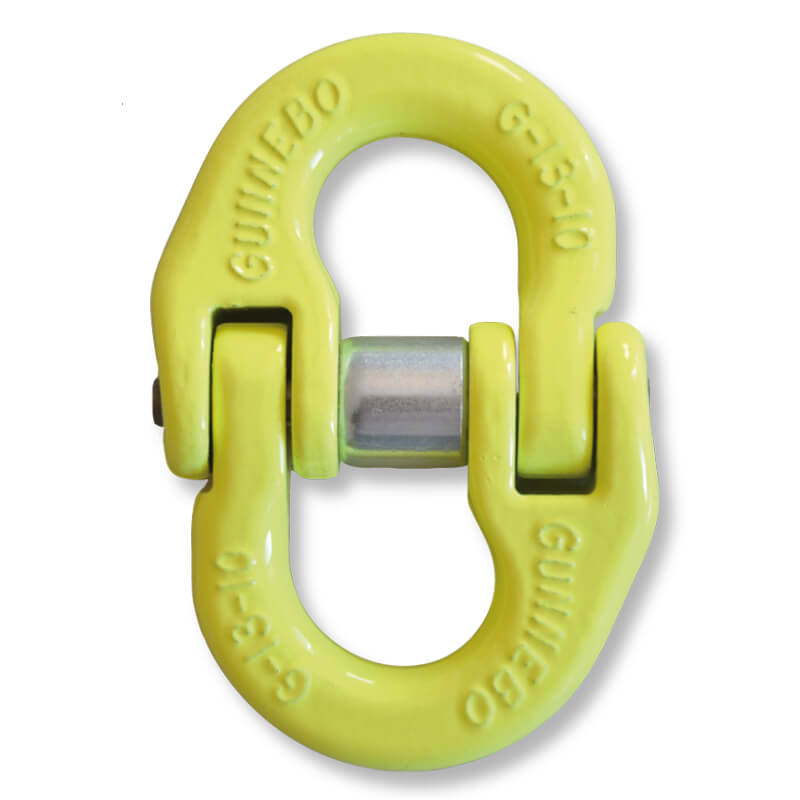

Coupling Link G GrabiQ
Quality is top priority
- Fatigue tested
- Forged alloy steel
- Quenched and tempered
- Steel from european suppliers
- 100 % proof load of each G-link
- 100 % Eddy current testing of pins
- 100 % dimension control of pins with vision technology
Clear markings
- Country of origin
- Traceability code
- Model, size and grade
Heavy duty locking bush
- Thick walls and washer protecting the spring
- Permanently pressed together in an automated process, reducing risk of breakage
- Square shaped stainless steel spring
- Elektrogalvanized or stainless steel depending on model
Fluorescent color
- For high visibility in the field
- Powder coated

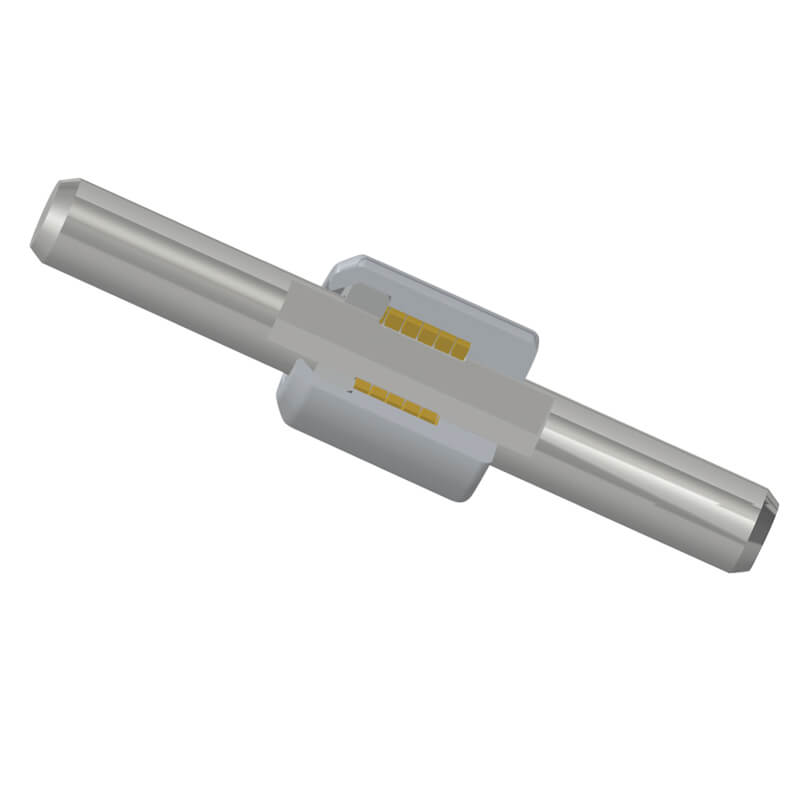

The special pin
- The pin has a recession in the center to give maximum locking effect
- Safe retention of the locking bush
- The pins are made in an automatic turning machine
- Batch and grade marking in the center of all G-links
Safety is the highest priority

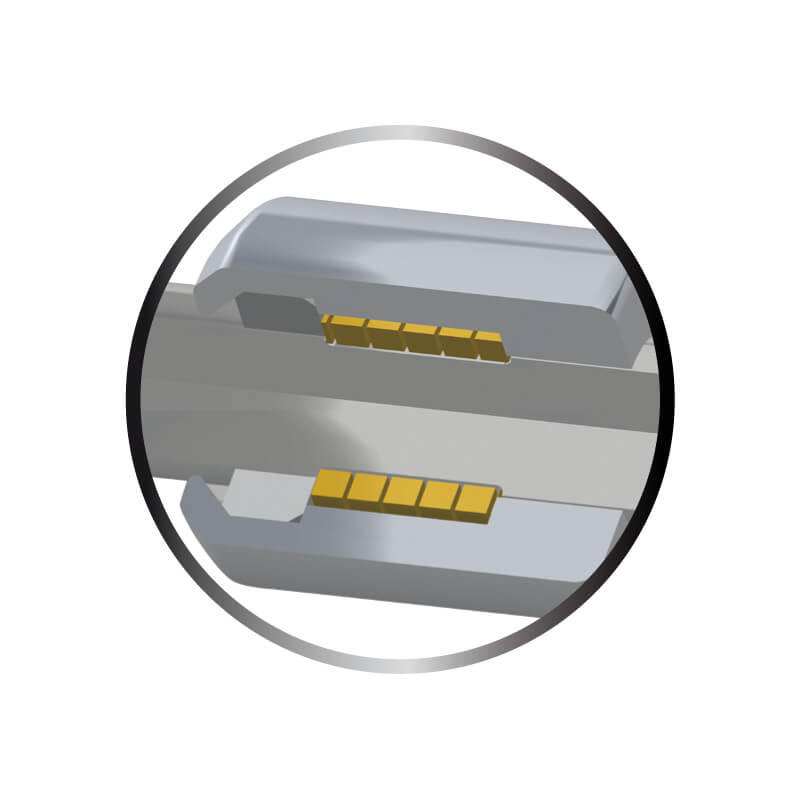

- To keep the pin securely in place every loop of the square shaped wire locking spring actively creates maximum locking effect
- Every part of the locking spring – even if the wire should break – is still active to hold the pin

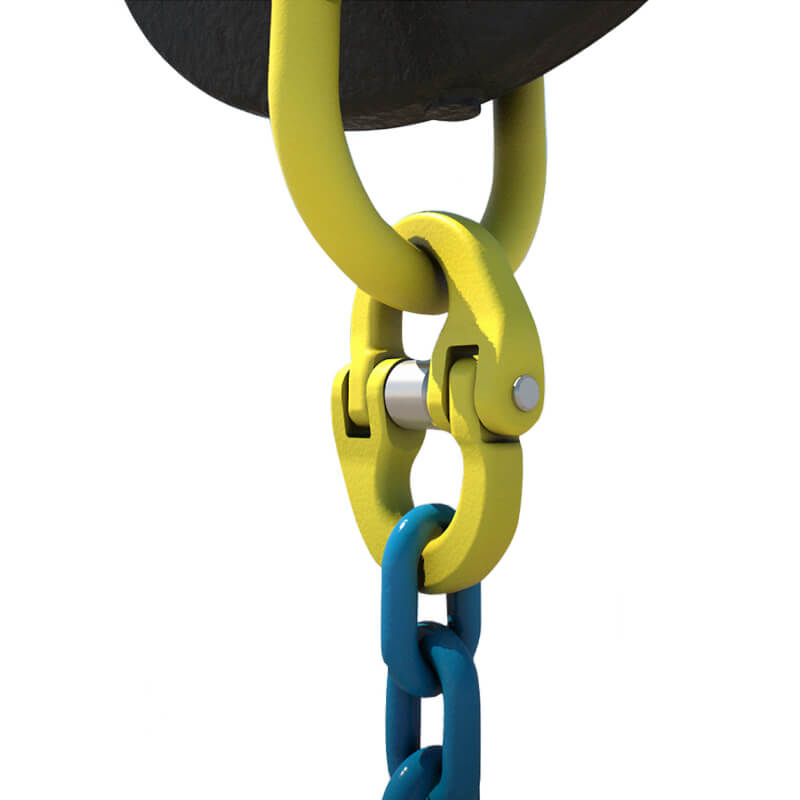

For use with master link and Eye hook.
Fulfills requirements in:
EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
Safety factor 4:1

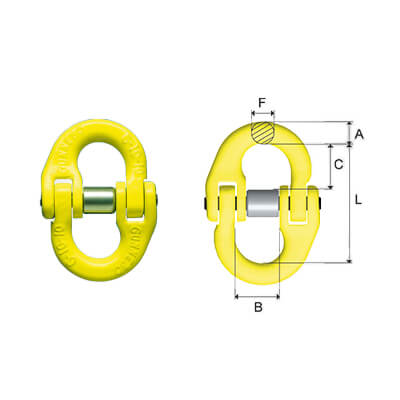

All dimensions in mm
Coupling Link G GrabiQ – Detailed information
| Part no | Code | WLL t | L | B | F | A | C | Weight kgs |
|---|
| Z100821 | G-6-10 | 1.5 | 45 | 15 | 7 | 8 | 16 | 0.09 |
| Z101358 | G-7-10 | 2.0 | 56 | 18 | 9 | 11 | 22 | 0.161 |
| Z100822 | G-8-10 | 2.6 | 56 | 18 | 9 | 11 | 22 | 0.17 |
| Z100823 | G-10-10 | 4.0 | 68 | 25 | 12 | 13 | 26 | 0.336 |
| Z100824 | G-13-10 | 6.8 | 89 | 29 | 15 | 17 | 33 | 0.759 |
| Z100825 | G-16-10 | 10.3 | 106 | 36 | 19 | 20 | 40 | 1.366 |
| Z101119 | G-20-10 | 16.0 | 125 | 43 | 23 | 26 | 44 | 2.727 |
| Z101339 | G-22-10 | 20.0 | 152 | 50 | 26 | 28 | 59 | 3.6 |
| Z101365 | G-26-10 | 27.3 | 161 | 58 | 32 | 34 | 61 | 5.7 |
| Z101666 | G-32-10 | 40.0 | 200 | 70 | 38 | 40 | 77 | 9.5 |
