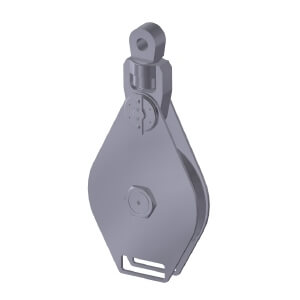

A Light Type Snatch block is intended as assistance during lifting or lashing jobs,
for instance when rerouting a wire both in horizontal and vertical directions.
A snatch block is constructed in such a way that reeving is easy, because one of the side plates can be opened. Any end connection of the wire will therefore not have to be taken off. The eye of the snatch block fits on the standard D-shackle or bow shackle.
The light models of our snatch blocks are available from 3 to 18 inches and in wire diameters of 8 to 25 mm.
Due to the light-weight construction, the snatch blocks can quickly and easily be used for various purposes.
Snatch blocks are also available with the accompanying shackle.
Our snatch blocks are also available with the accompanying shackle included.
For more information about this product, please contact us. We will be happy to inform you about the options.
| Material: | Mild steel |
| Safety Factor: | 4 times |
| Finish: | Painted |
| Temperature Range: | -20 up to +180 degrees Celsius |
| Standard Certification: | Certificate of Conformity Proof Load Certificate |

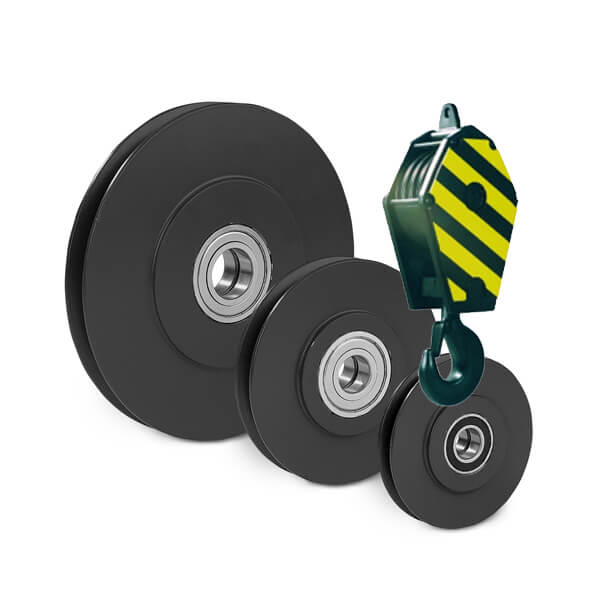

Sheaves with roller bearing on request.
Groove size can be modified on request for customized rope sizes.
| Type | WLL | Rope Size | Line pull | Suitable for shackle | A | ØB | C | ØD | ØD1 | Weight |
| tons | mm | tons | mm | kg ± | ||||||
| SH43118 | 35 | 32 – 38 | 17.5 | 35 | 680 | 60 | 80 | 380 | 450 | 160 |
| SH43224 | 55 | 38 – 42 | 27.5 | 55 | 850 | 73 | 100 | 520 | 605 | 260 |
| SH43230 | 85 | 44 – 48 | 42.5 | 85 | 1020 | 85 | 120 | 640 | 760 | 484 |
| SH43234 | 120 | 50 – 55 | 60 | 120 | 1190 | 100 | 140 | 740 | 860 | 740 |
| SH43236 | 150 | 60 – 70 | 75 | 150 | 1320 | 113 | 160 | 760 | 910 | 992 |
| SH43242 | 200 | 75 – 85 | 100 | 200 | 1490 | 135 | 170 | 870 | 1060 | 1573 |
| SH43246 | 250 | 88 – 93 | 125 | 250 | 1645 | 145 | 190 | 970 | 1170 | 2097 |
