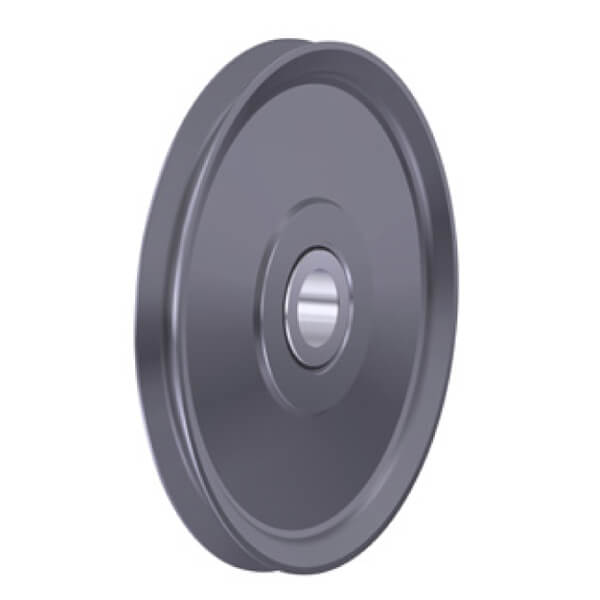

The welded sheave is entirely custom designed.
The sheaves are designed and manufactured according to your specifications.
Sheave is available in any requested size.
| Wire dia. | ØD1 | ØD2 | R | A | B |
| mm | |||||
| 32 | 630 | 720 | 17 | 120 | 80 |
| 36 | 720 | 810 | 19 | 160 | 80 |
| 40 | 810 | 920 | 21 | 160 | 80 |
| 42 | 900 | 1050 | 22,5 | 200 | 80 |
| 48 | 960 | 1200 | 25,5 | 220 | 80 |
| 52 | 1040 | 1250 | 27,5 | 220 | 80 |
| 56 | 1120 | 1280 | 29,5 | 240 | 95 |
| 63 | 1250 | 1420 | 33 | 240 | 95 |
| 72 | 1420 | 1625 | 38 | 260 | 95 |
| 75 | 1500 | 1700 | 39,5 | 260 | 95 |
