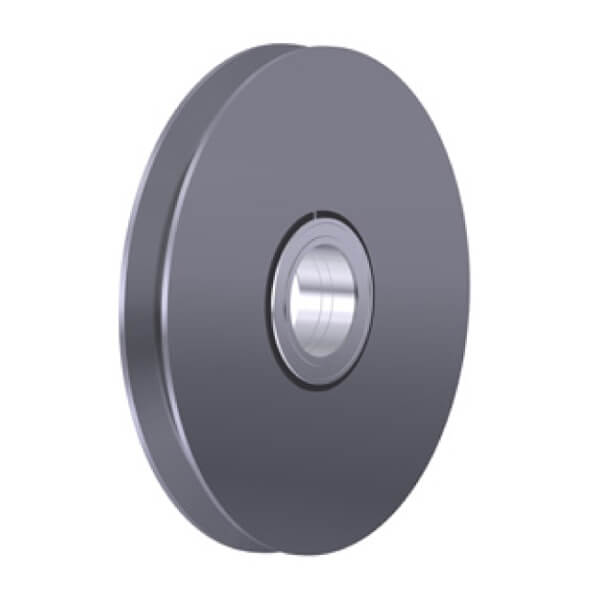

The sheaves machined from solid are entirely custom designed.
These sheaves are designed and manufactured according to your specifications.
Sheave is available in any requested size.
| Wire dia. | ØD1 | ØD2 | R | A | B |
| mm | |||||
| 13 | 286 | 320 | 7 | 80 | 60 |
| 14 | 280 | 320 | 7,5 | 90 | 67 |
| 16 | 315 | 360 | 8,5 | 90 | 67 |
| 18 | 355 | 410 | 9,5 | 65 – 100 | 46 – 67 |
| 20 | 400 | 460 | 10,5 | 90 | 67 |
| 22 | 450 | 515 | 12 | 90 | 67 |
| 18 – 20 – 22 | 500 | 560 | 9,5 – 10,5 – 12 | 90 – 120 | 67 – 80 |
| 22 – 26 | 560 | 630 | 12 – 14 | 90 – 120 – 200 | 67 – 80 – 80 |
| 28 | 575 | 650 | 15 | 160 | 80 |
| 32 | 630 | 720 | 17 | 160 | 80 |
