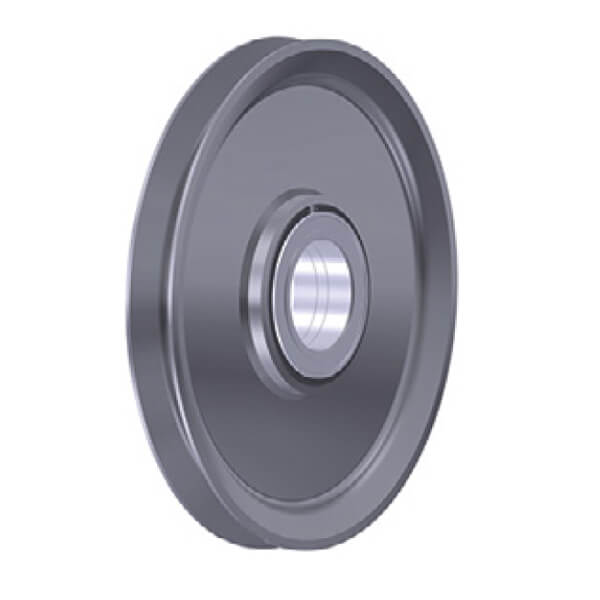

These sheaves are roll-forged and are entirely custom designed.
The sheaves are designed and manufactured according to your specifications.
Sheave is available in any size with maximum outside diameter (d2) 950mm and rope diameter 38mm.

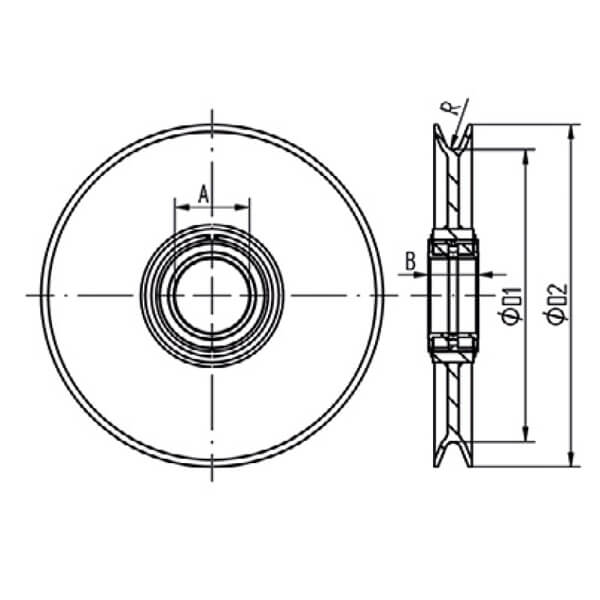

| Wire dia. | ØD1 | ØD2 | R | A | B |
| mm | |||||
| 13 | 286 | 320 | 7 | 80 | 60 |
| 14 | 280 | 320 | 7,5 | 90 | 67 |
| 16 | 315 | 360 | 8,5 | 90 | 67 |
| 18 | 355 | 410 | 9,5 | 65 – 100 | 46 – 67 |
| 20 | 400 | 460 | 10,5 | 90 | 67 |
| 22 | 450 | 515 | 12 | 90 | 67 |
| 18 – 20 – 22 | 500 | 560 | 9,5 – 10,5 – 12 | 90 – 120 | 67 – 80 |
| 22 – 26 | 560 | 630 | 12 – 14 | 90 – 120 – 200 | 67 – 80 – 80 |
| 28 | 575 | 650 | 15 | 160 | 80 |
| 32 | 630 | 720 | 17 | 160 | 80 |
