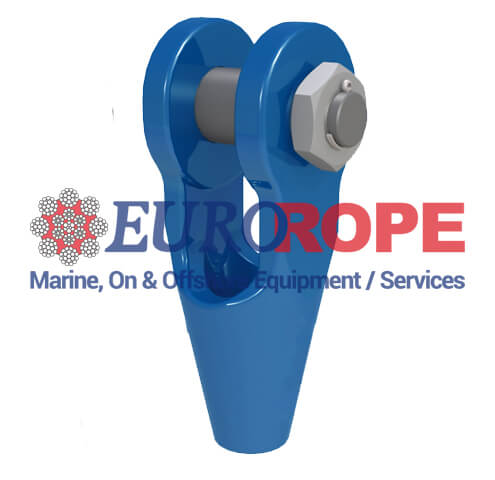

Open Spelter Socket with bolt and nut

Art. nr.: 1.6.OSS-B Category:

Details

  • Minimum breaking load: 8 ton – 1600 ton
  • Diameter wire rope (mm): 6-7mm – 135-140mm
  • Diameter wire rope (inch): 1/4 inch – 5 1/2 inch
  • Material: Alloy cast steel
  • Finish: blue colour paint (Hot dipped galvanized on request)
  • All sockets can be provided with Declaration of compliance according EN 10204-2.1,
    Material certificate according EN 10204-3.1 and EC Declaration according machine directive 98/37/EC

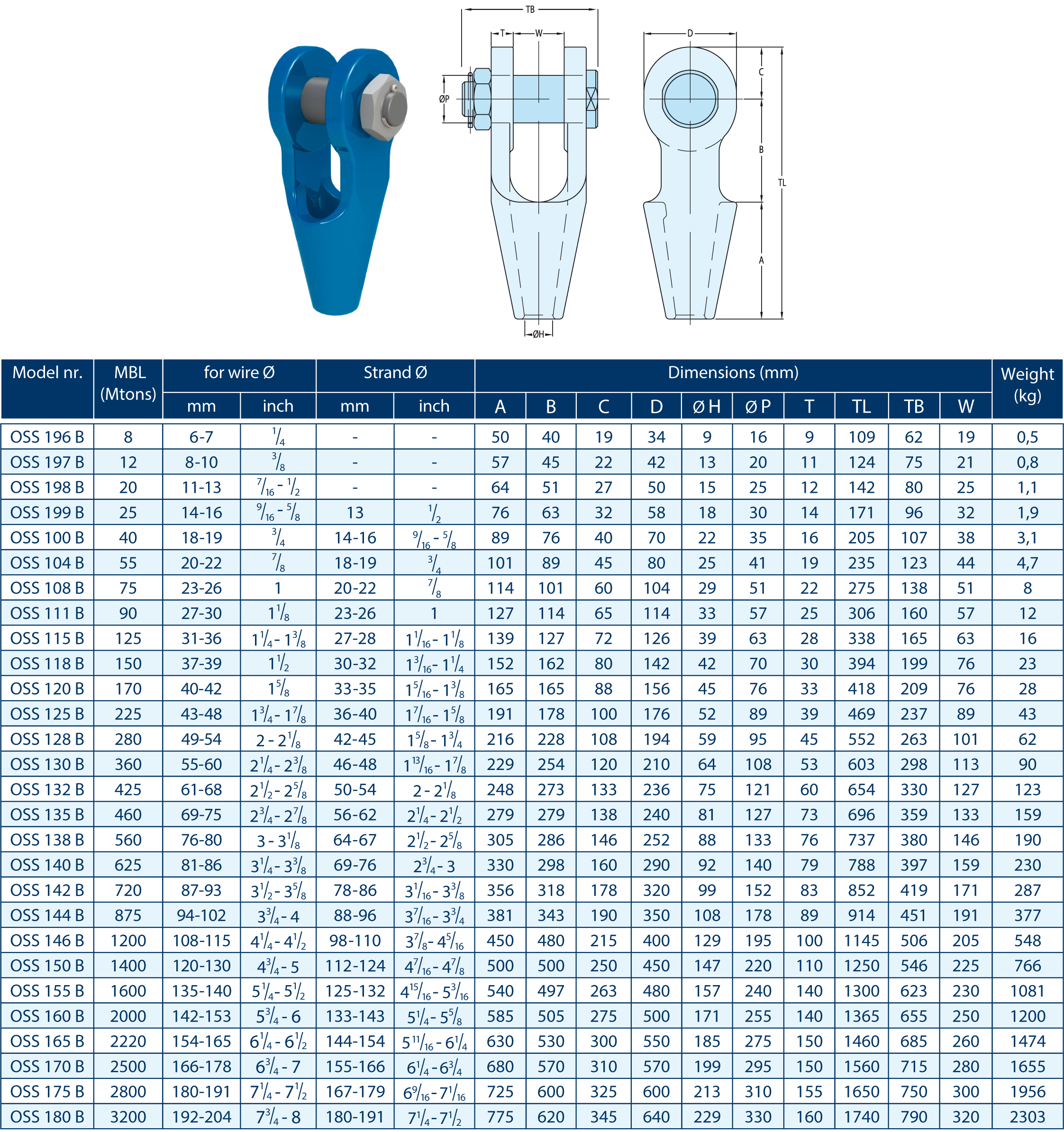

Specifications

Article numberMinimum breaking load (MBL)Wire Diameter
OSS 196 B8 ton6-7 mm
OSS 197 B12 ton8-10 mm
OSS 198 B20 ton11-13 mm
OSS 199 B25 ton14-16 mm
OSS 100 B40 ton18-19 mm
OSS 104 B55 ton20-22 mm
OSS 108 B75 ton23-26 mm
OSS 111 B90 ton27-30 mm
OSS 115 B125 ton31-36 mm
OSS 118 B150 ton37-39 mm
OSS 120 B170 ton40-42 mm
OSS 125 B225 ton43-48 mm
OSS 128 B280 ton49-54 mm
OSS 130 B360 ton55-60 mm
OSS 132 B425 ton61-68 mm
OSS 135 B460 ton69-75 mm
OSS 138 B560 ton76-80 mm
OSS 140 B625 ton81-86 mm
OSS 142 B720 ton87-93 mm
OSS 144 B875 ton94-102 mm
OSS 146 B1200 ton108-115 mm
OSS 150 B1300 ton120-130 mm
OSS 155 B1600 ton135-140 mm
OSS 160 B2000 ton142-153 mm
OSS 165 B2220 ton154-165 mm
OSS 170 B2500 ton166-178 mm
OSS 175 B2800 ton180-191 mm
OSS 180 B3200 ton192-204 mm
