Fast Connector Socket with bolt nut and Spin Resistant Connector
Fast Connector Socket with bolt nut and Spin Resistant Connector
Minimum breaking load: 75T – 225T
Diameter wire rope (mm): 23-26mm – 43-48mm
Diameter wire rope (inch): 1 inch – 1 3/4-1 7/8
Material: Alloy cast steel
Finish: blue colour paint (Hot dipped galvanized on request)
Specially designed for fast reeving in Mobile and Crawler Crane applications
Fast connector sockets have 100% efficiency
Sockets and buttons are re-usable
All sockets can be provided with Declaration of compliance according EN 10204-2.1, Material certificate according EN 10204-3.1 and EC Declaration according machine directive 98/37/EC

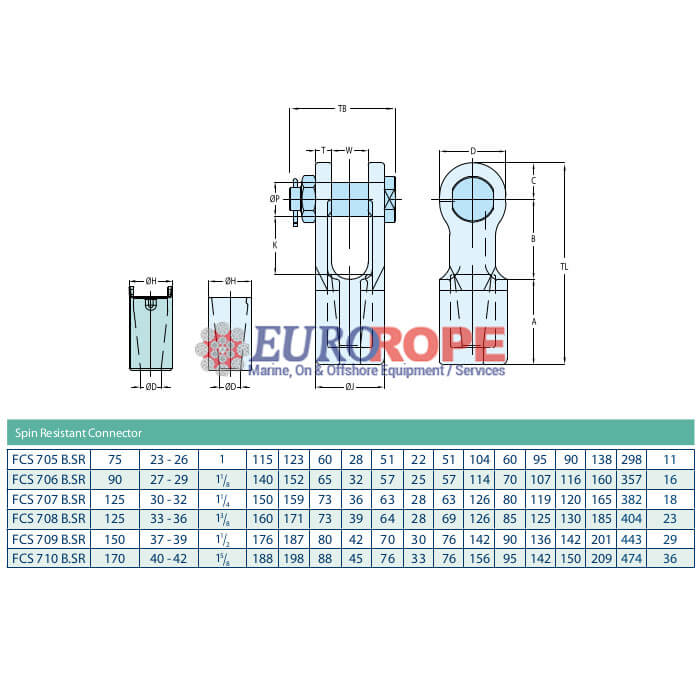

Article number, Minimum breaking load, Wire Diameter
FCS 705 B.SR, MBL: 75 Ton, 23-26 mm
FCS 706 B.SR, MBL: 90 Ton, 27-29 mm
FCS 707 B.SR, MBL: 125 Ton, 30-32 mm
FCS 708 B.SR, MBL: 125 Ton, 33-36 mm
FCS 709 B.SR, MBL: 150 Ton, 37-39 mm
FCS 710 B.SR, MBL: 170 Ton, 40-42 mm
FCS 711 B.SR, MBL: 225 Ton, 43-48 mm
