Closed Wedge Socket
Closed Wedge Socket
Minimum breaking load: 40T – 625T
Diameter wire rope (mm): 18-19mm – 81-86mm
Diameter wire rope (inch): 3/4 inch – 3 1/8-3 1/4 inch
Material: Alloy cast steel
Finish: blue colour paint (Hot dipped galvanized on request)
All sockets can be provided with Declaration of compliance according EN 10204-2.1, Material certificate according EN 10204-3.1 and EC Declaration according machine directive 98/37/EC

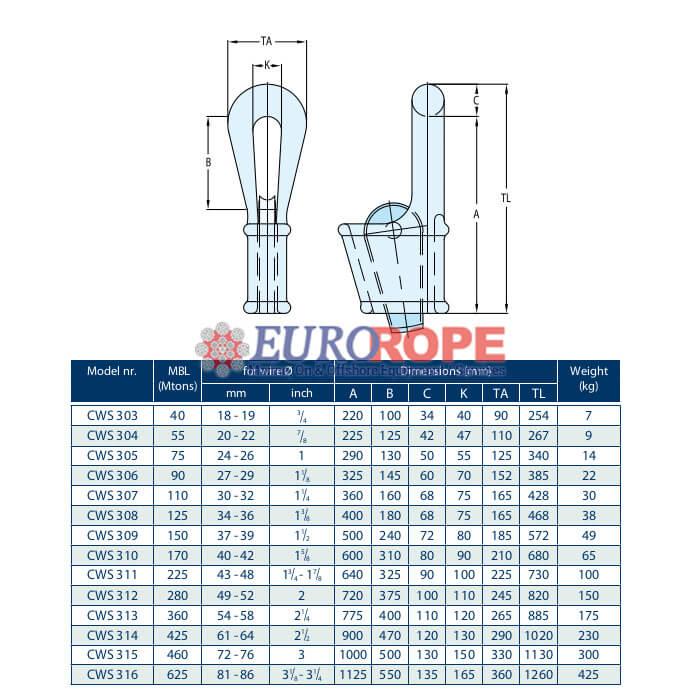

Article number, Minimum breaking load, Wire Diameter
CWS 303, MBL: 40 Ton, 18-19 mm
CWS 304, MBL: 55 Ton, 20-22 mm
CWS 305, MBL: 75 Ton, 24-26 mm
CWS 306, MBL: 90 Ton, 27-29 mm
CWS 307, MBL: 110 Ton, 30-32 mm
CWS 308, MBL: 125 Ton, 34-36 mm
CWS 309, MBL: 150 Ton, 37-39 mm
CWS 310, MBL: 170 Ton, 40-42 mm
CWS 311, MBL: 225 Ton, 43-48 mm
CWS 312, MBL: 280 Ton, 49-52 mm
CWS 313, MBL: 360 Ton, 54-58 mm
CWS 314, MBL: 425 Ton, 61-64 mm
CWS 315, MBL: 460 Ton, 72-76 mm
CWS 316, MBL: 625 Ton, 81-86 mm
