Dee shackles with safety bolt – G-6038

Art. nr.: G-6038 Category: Heavy Duty Shackles

Green Pin G-6038 details

Material: bow and pin alloy steel, Grade 8, quenched and tempered
Safety Factor: MBL equals 5x WLL
Finish: hot dipped galvanized
Certification: 2.1 | 2.2 | 3.1 | MTC a | MPI a | US a | CE

Green Pin G-6038 shackle dimensions

Working Load Limit	Diameter Bow	Diameter Pin	Diameter Eye	Width Eye	Width Inside	Length Inside	Length	Length Bolt	Thickness Nut	Weight Each
t	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	kg
120	95	95	208	95	147	274	521	440	50	110

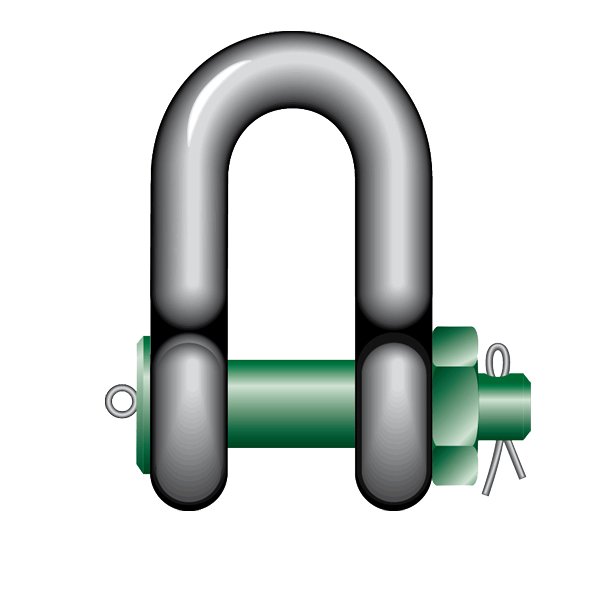

GP HD D bolt
