The IW range of heavy duty pneumatic impact wrenches is designed for high volume production, heavy maintenance and
construction work. A choice of four models in square drive sizes ½”, ¾”, 1” or 1½” is available all offering an excellent power
to weight ratio, compact design and low vibration.

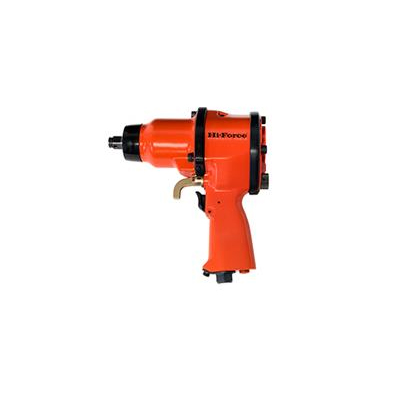

Available with pistol grip (models IW13P and IW19P) and back handle grip (models IW25B and IW38B) these high quality tools
offer increased durability, low noise level and reduced operator fatigue.
All models can be used for tightening and loosening applications and incorporate a four position adjustable power output device.
The IS and MS range of impact quality sockets are available for use with IW impact wrenches.
| Model No. | Square Drive Size | Bolt Capacity | Free Speed | Max Torque | Recommended Torque | Air Consumption | Weight kg | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | R.P.M. | I.P.M. | Nm | lbf.ft | Nm | lbf.ft | m3/min | cfm | |||
| Pistol grip versions | ||||||||||||
| IW13P | 1/2″ | 16 | 5/8″ | 6300 | 1200 | 450 | 300 | 90-350 | 65-260 | 0.35 | 12.5 | 2.8 |
| IW19P | 3/4″ | 22 | 7/8″ | 3800 | 1100 | 870 | 640 | 250-800 | 185-590 | 0.60 | 21.4 | 6.2 |
| Back handle grip versions | ||||||||||||
| IW25B | 1″ | 45 | 1 3/4″ | 3700 | 700 | 2700 | 1980 | 1000-2450 | 740-1772 | 0.75 | 26.7 | 10.7 |
| IW38B | 1 1/2″ | 50 | 2″ | 3000 | 600 | 3500 | 2600 | 1000-3200 | 740-2370 | 0.82 | 29.2 | 16.0 |
Note: Performance figures are at 0.62 MPA (Pe) (90 PSI) air pressure
