The HPX range of manually operated ultra high pressure hydraulic pumps is specifically designed for high pressure applications such as oil injection for bushing removal, valve testing, calibration of high pressure equipment and instruments, laboratory burst and proof testing, etc. The two speed operation, on both the HPX1500 and HPX2800 incorporates automatic changeover from low to high pressure at 20 Bar, enabling smooth and low operator handle effort. Both models are fitted with a dual scale gauge reading Bar and PSI contained within a bespoke loop handle and feature a mesh casing to protect the gauge from accidental damage.

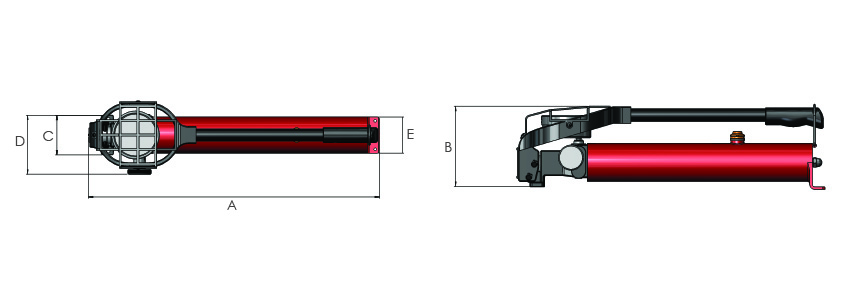

| MODEL NO. | WORKING PRESSURE BAR | USABLE OIL CAP. LITRES | DISPLACEMENT PER STROKE (CM3) | OUTLET PORT | WEIGHT KG | DIMENSIONS IN MM | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1ST STAGE | 2ND STAGE | A | B | C | D | E | |||||
| HPX1500 | 1500 | 1.2 | 20 | 1.0 | 1/4″ BSP | 6.5 | 615 | 161 | 84 | 125 | 76.5 |
| HPX2800 | 2800 | 1.2 | 20 | 0.8 | 9/16″ – 18UNF | 6.5 | 615 | 161 | 84 | 125 | 76.5 |
| MODEL NO. | WORKING PRESSURE BAR | DESCRIPTION |
|---|---|---|
| XHH3-15 | 1500 | 3 metres hose with 1/4″ BSP male thread each end |
| XHH5-15 | 1500 | 5 metres hose with 1/4″ BSP male thread each end |
| XHH3-30 | 3000 | 3 metres hose with 9/16″ UNF male coned thread each end |
| XHH5-30 | 3000 | 5 metres hose with 9/16″ UNF male coned thread each end |
