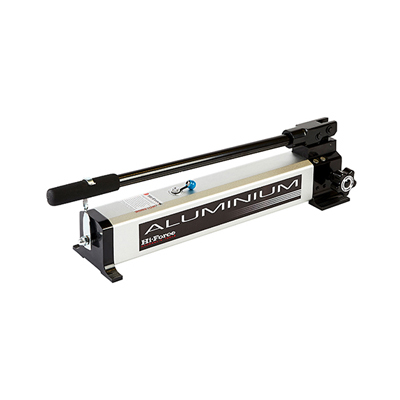

The HP manually operated aluminium pump range offers two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 700 Bar and the range includes pump models suitable for use with either single or double acting cylinders and tools. The HP range offers the ideal solution for applications where completely independent, portable hydraulic power is required. With low handle effort characteristics for easy operation and lightweight design, all models are of strong durable construction. Hi-Force HP manually operated pumps have a proven track record industry wide and offer excellent value for money in portable hydraulic power.
| MODEL NO. | VALVE TYPE | DISPLACEMENT PER STROKE CM3 | USABLE OIL CAP. LITRES | HANDLE EFFORT KG | WEIGHT KG | DIMENSIONS IN MM | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1ST STAGE | 2ND STAGE | A | B | C | D | E | F | |||||
| Two speed hand operated pumps for single acting cylinders and tools | ||||||||||||
| HP211 | 2-way | 12.9 | 1 | 0.5 | 27 | 2 | 335 | 388 | 135 | 100 | 125 | 40 |
| HP212 | 2-way | 12.9 | 2.3 | 1 | 40 | 4 | 560 | 610 | 140 | 100 | 125 | 40 |
| HP232 | 2-way | 12.9 | 2.3 | 2 | 40 | 6.9 | 560 | 610 | 160 | 140 | 155 | 50 |
| HP252 | 2-way | 12.9 | 2.3 | 5 | 40 | 9.6 | 585 | 610 | 160 | 168 | 145 | 50 |
| Two speed hand operated pumps for double acting cylinders and tools | ||||||||||||
| HP232D | 4-way | 12.9 | 2.3 | 2 | 40 | 8.7 | 580 | 625 | 160 | 140 | 175 | 30 |
| HP252D | 4-way | 12.9 | 2.3 | 5 | 40 | 13.6 | 605 | 625 | 160 | 168 | 175 | 30 |
