HEP2 Range

Category:

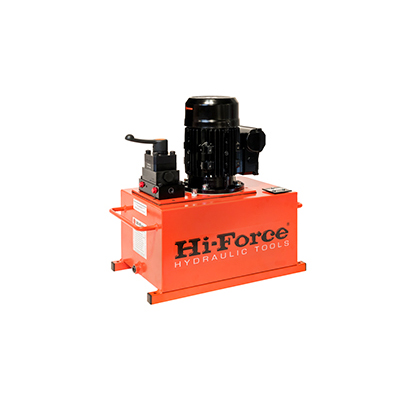

The HEP2 series two stage electric driven hydraulic pump range offers a low pressure
flow rate of 7 litres/min with automatic changeover to high pressure flow rate of 0.65 litres/min
up to 700 Bar with a choice of 110, 240 or 380/440 Volt motor options.

With 2, 3 or 4-way manual and electric solenoid valve options the HEP2 Range is suitable
for a wide range of applications and is the most commonly selected Hi-Force electric pump.
All HEP2 Range pumps are also fitted with an externally adjustable pressure relief valve for
easy adjustment up to the maximum working pressure of 700 Bar.

  • Externally adjustable pressure relief valve
  • Manual valve with load holding feature fitted as standard (excl. 2-way valves)
  • Solenoid valve options available

SPECIFICATIONS HEP2 Range

MODELNUMBERVALVETYPEOILCAPLITRESMOTORKWMOTORVOLTAGEWEIGHTKG
HEP207111P-T Plate10.01.5110/115V – 1Ph47.0
HEP207112P-T Plate10.01.5220/240V – 1 Ph47.0
HEP207114P-T Plate10.01.5380/440V – 3 Ph47.0
HEP207121P-T Plate25.01.5110/115V – 1Ph63.0
HEP207122P-T Plate25.01.5220/240V – 1 Ph63.0
HEP207124P-T Plate25.01.5380/440V – 3 Ph63.0
HEP2072112-way10.01.5110/115V – 1Ph47.5
HEP2072122-way10.01.5220/240V – 1 Ph47.5
HEP2072142-way10.01.5380/440V – 3 Ph47.5
HEP2072212-way25.01.5110/115V – 1Ph63.5
HEP2072222-way25.01.5220/240V – 1 Ph63.5
HEP2072242-way25.01.5380/440V – 3 Ph63.5
HEP2073113-way10.01.5110/115V – 1Ph47.5
HEP2073123-way10.01.5220/240V – 1 Ph47.5
HEP2073143-way10.01.5380/440V – 3 Ph47.5
HEP2073213-way25.01.5110/115V – 1Ph63.5
HEP2073223-way25.01.5220/240V – 1 Ph63.5
HEP2073243-way25.01.5380/440V – 3 Ph63.5
HEP2074114-way10.01.5110/115V – 1Ph47.5
HEP2074124-way10.01.5220/240V – 1 Ph47.5
HEP2074144-way10.01.5380/440V – 3 Ph47.5
HEP2074214-way25.01.5110/115V – 1Ph63.5
HEP2074224-way25.01.5220/240V – 1 Ph63.5
HEP2074244-way25.01.5380/440V – 3 Ph63.5

DIMENSIONS IN MM

MODELNUMBERABCDEFG
HEP207111498198230246221368438
HEP207112498198230246221368438
HEP207114498198230246221368438
HEP207121527227259306281490570
HEP207122527227259306281490570
HEP207124527227259306281490570
HEP207211498198230246221368438
HEP207212498198230246221368438
HEP207214498198230246221368438
HEP207221527227259306281490570
HEP207222527227259306281490570
HEP207224527227259306281490570
HEP207311498198230246221368438
HEP207312498198230246221368438
HEP207314498198230246221368438
HEP207321527227259306281490570
HEP207322527227259306281490570
HEP207324527227259306281490570
HEP207411498198230246221368438
HEP207412498198230246221368438
HEP207414498198230246221368438
HEP207421527227259306281490570
HEP207422527227259306281490570
HEP207424527227259306281490570
