The improved NS range of hydraulic nut splitters offers a choice of 5 models suitable for hexagon nut AF sizes from 17
to 75 mm (M10 to M48 bolt sizes). The revolutionary design incorporates a hardened steel linkage that ensures the
blade cutting edge is kept parallel to the nut throughout the splitting process which improves operational efficiency
and more importantly, blade life. Designed to easily split corroded nuts up to RC44 hardness, Hi-Force nut splitters
offer the ideal ‘cold cut’ solution for removing worn or corroded fasteners, especially in applications where ‘hot work’
permits are not allowed. Optional unique 360° positional swivel coupling for easy adjustment and fitment in
confined spaces is available for use with models NS104 and NS110.

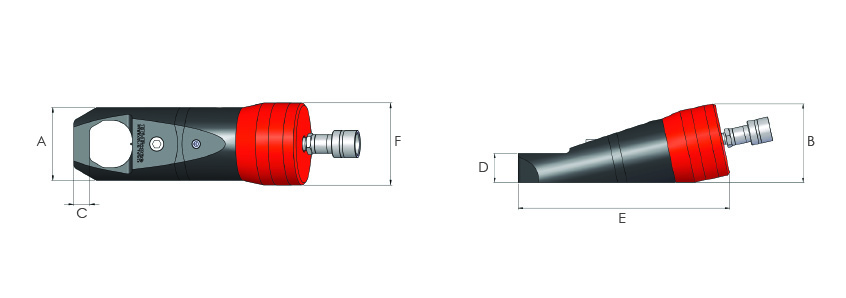

| MODEL NO. | HEXAGON AF SIZES | BOLT SIZES | WEIGHT KG | DIMENSIONS IN MM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | METRIC | IMPERIAL | A | B | C | D | E | F | ||
| NS104 | 17 – 32 | 11/16″ – 1 1/4″ | M10 – M22 | 1/2″ – 3/4″ | 4.0 | 64 | 77 | 12.5 | 30 | 210 | 67 |
| NS110 | 32 – 41 | 1 1/4″ – 1 5/8″ | M22 – M27 | 3/4″ – 1″ | 7.4 | 78 | 96 | 20 | 37 | 268 | 88 |
| NS200 | 41 – 50 | 1 5/8″ – 2″ | M27 – M33 | 1″ – 1 1/4″ | 10.6 | 96 | 116 | 21 | 43 | 315 | 108 |
| NS206 | 50 – 60 | 2″ – 2 3/8″ | M33 – M39 | 1 1/4″ – 1 1/2″ | 15.8 | 115 | 138 | 24 | 52 | 336 | 126 |
| NS215 | 60 – 75 | 2 3/8″ – 2 15/16″ | M39 – M48 | 1 1/2″ – 1 7/8″ | 39.3 | 156 | 175 | 27 | 75 | 426 | 162 |
