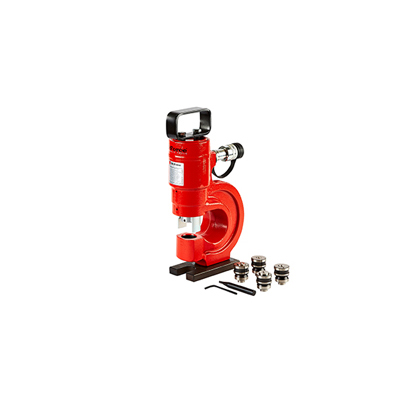

The Hi-Force HHP series hydraulic hole puncher range offers a choice of two models comprising of the HHP30, 30
tonnes capacity single acting version, and the HHP50, 50 tonnes capacity double acting version. Both models are
suitable for punching holes in steel plate as per the respective capacity of each model and are supplied complete
with standard punch and die sets and an integral positioning and carrying handle.
| MODEL NO. | MAXIMUM FORCE TONNES | THROAT DEPTH MM | PUNCH CAPACITY (MM) | STANDARD PUNCH/DIE SETS INCLUDED MM | RECOMMENDED PUMP & HOSE | WEIGHT EXCL. PUMP KG | DIMENSIONS IN MM | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEEL PLATE | HOLE PUNCH DIAMATER | MANUALLY OPERATED | PNEUMATICALLY OPERATED | A | B | C | D | |||||
| HHP30 | 30 | 70 | 10 | up to 20.5 | 10.5, 13.5, 17.5, 20.5 | HP232 complete with HC3 3m hose | AHP1120 complete with HC3 3m hose | 13 | 370.0 | 220 | 13 | 78.0 |
| HHP50 | 50 | 70 | 15 | up to 25.5 | 10.5, 13.5, 17.5, 20.5, 25.5 | HP232D complete with 2 x HC3 | AHP1141 complete with 2 x HC3 | 42 | 413.5 | 281 | 15 | 70.6 |
