| Product Code: | P-7180 |
| Material: | Drop forged, Grade 10 |
| Safety Factor: | MBL equals 2x Lashing Capacity |
| Standard: | EN12195-3 |
| Finish: | Painted Blue |
| Certification: | 2.1 2.2 |
| Note: | Stf=3000daN |
| Compatible with: | FCHLASH1525 (G-4151; 4,75t, G-4153; 4,75t or UCRCT; 10t are necessary to connect the loadbinder with FCHLASH1525) |

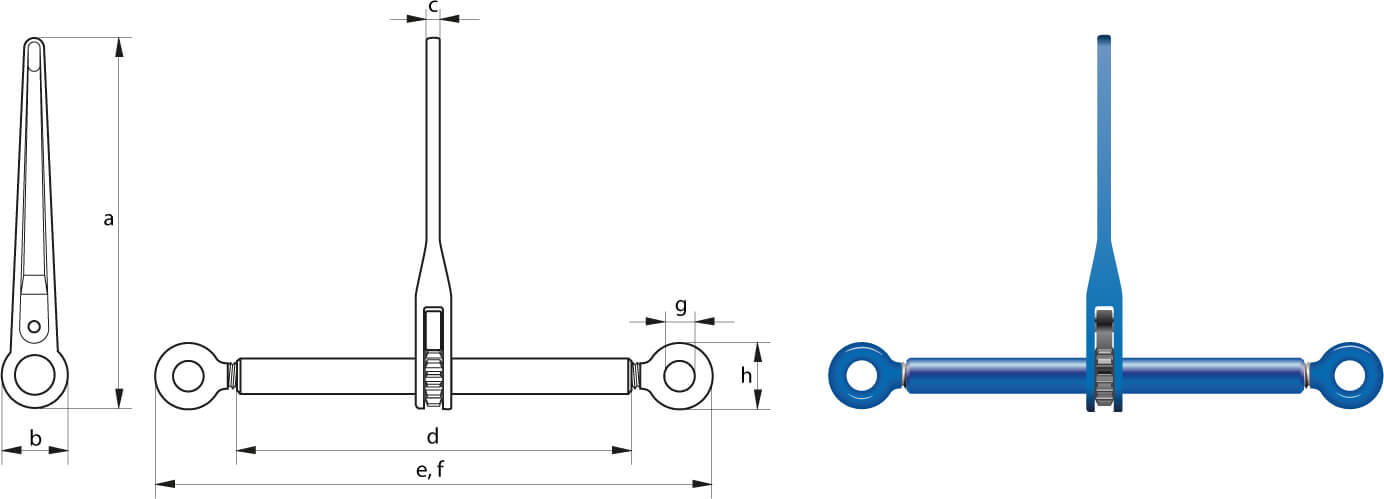

| Chain Size | Length Handle | Diameter | Thickness | Length Barrel | Length open position | Length closed position | diameter eye inside | diameter eye outside | take-up | lashing capacity | proof load | minimum breaking load | weight each |
| mm | a mm | b mm | c mm | d mm | e mm | f mm | g mm | h mm | mm | t | t | t | kg |
| 15×25 | 387 | 65 | 15 | 410 | 864 | 564 | 30 | 71 | 300 | 10 | 12.5 | 21.2 | 5.85 |

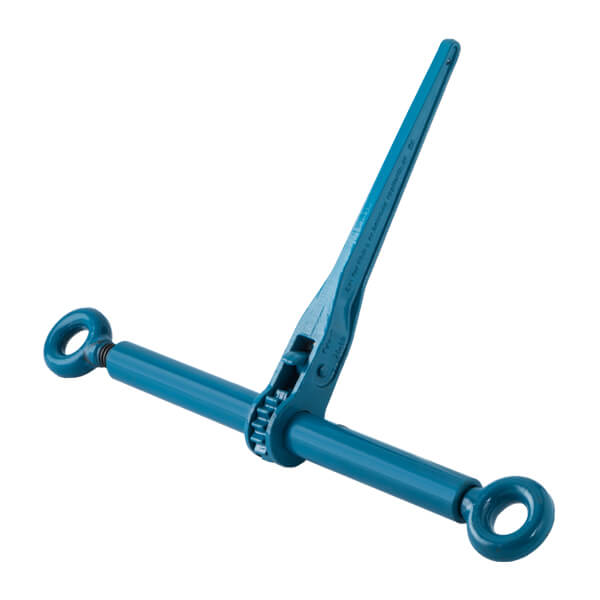

The Green Pin Tycan Ratchet Loadbinder is a grade 10 ratchet type loadbinder for use with Green Pin Tycan Chain.
The takeup-length of the loadbinder has been designed specifically for use with Green Pin Tycan Chain.
The ratchet in this loadbinder enables the precise setting of the lashing length and tension.
The Green Pin Tycan Ratchet Loadbinder is available with a lashing capacity of 10 ton.
