| Product code: | UCRCT |
| Material: | Alloy steel, grade 10, quenched and tempered |
| Safety Factor: | MBL equals 4x WLL and MBL equals 2x Lashing Capacity |
| Finish: | Painted Blue |
| Temperature Range: | -40°C to 200°C |
| Certification: | 2.1 2.2 3.1 MPI-b |
| Compatible with: | FCHLIFT1525; 5t (as shortning hook) FCHLASH1525; 10t (to connect to the loadbinder) |
| link size | WLL | lashing capacity | length | width | width outside | opening | thickness | width | width outside | length outside | diameter pin | weight each |
| mm | t | t | a mm | b mm | c mm | d mm | e mm | f mm | g mm | h mm | i mm | kg |
| 15×25 | 5 | 10 | 102 | 24 | 68 | 25 | 16 | 40 | 98,5 | 177,5 | 20 | 2 |

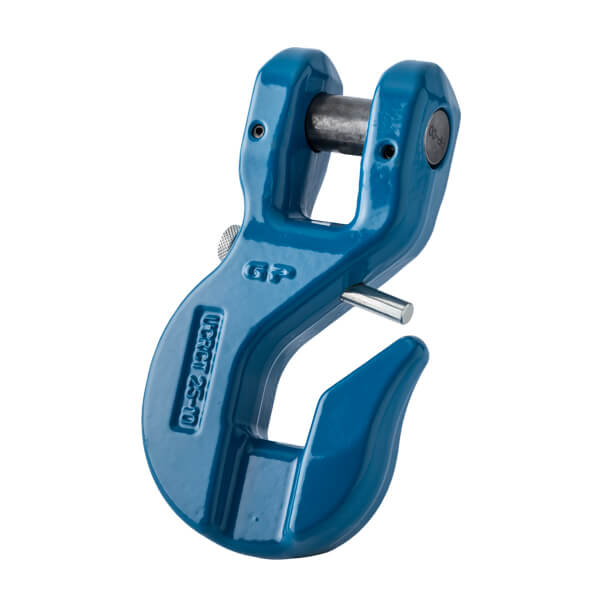

The Green Pin Tycan Grab Hook C GR10 is a grade 10 clevis grab hook with a locking pin for use with Green Pin Tycan Chain.
The hook is available with a working load limit 5 ton and a lashing capacity of 10 ton.
