• For easy attachment of other
GrabiQ or wire components.

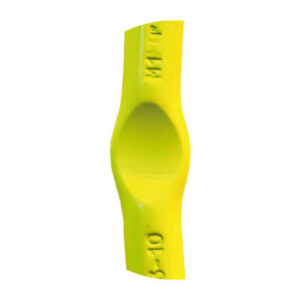

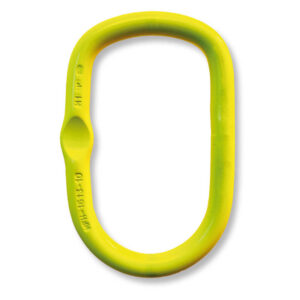

• Traceability code.
• Model, size and grade.
• Manufacturers mark.

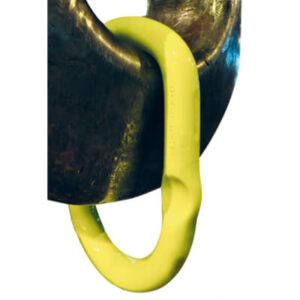

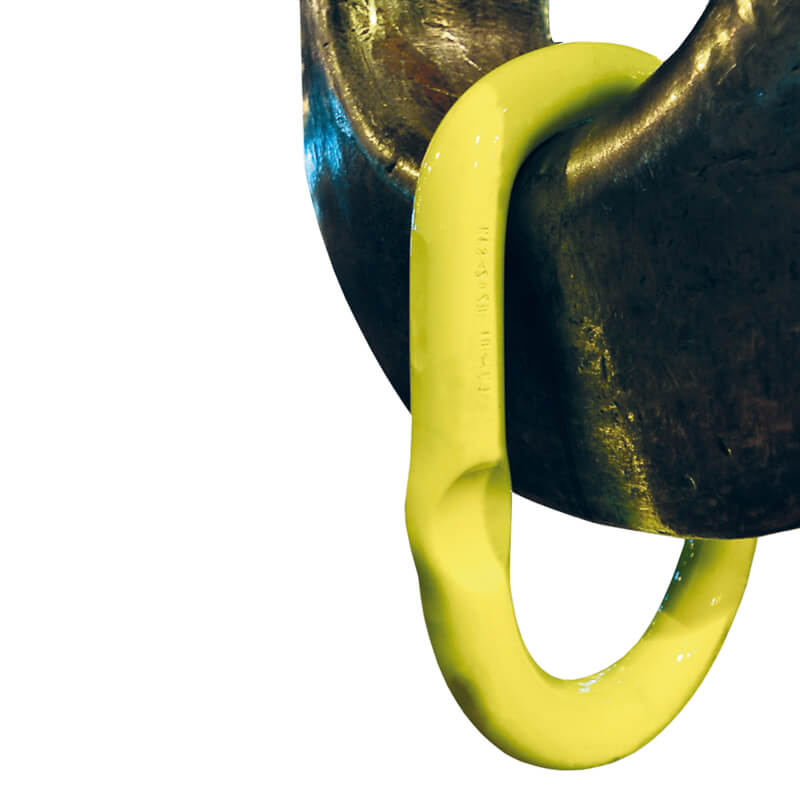

• Designed to fit perfectly on crane
hooks type DIN 15401 and DIN
15402.
• Reduces wear and tear on the
crane hook.
• Safer lifting operations
• Full radius design.
• Perfect balance.
• Generous space.
• Fatigue tested.
• Forged alloy steel.
• Quenched and tempered.
• 100% proof load of each MFH.
• 100% visually inspected.
• Full traceability back to the raw material.
• Computer controlled welding process.
• For high visibility in the field

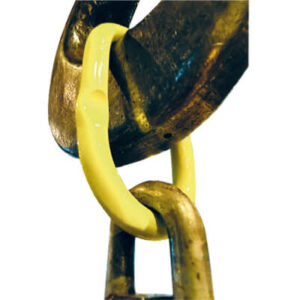

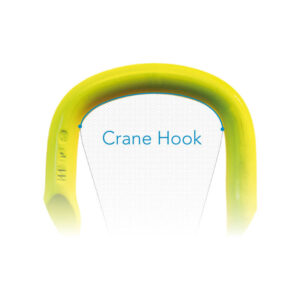

The upper part of the master link
has a unique design with a larger
radius, ensuring a perfect fit on
the crane hook. This means less
wear and tear, both on the crane
hook and the master link.

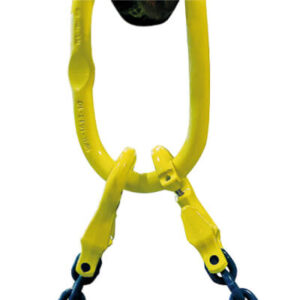

Parallel legs and suitable width
provide generous space for
connecting multiple legs to the
master link making the assembly
easier.

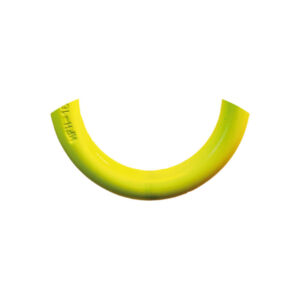

The shape of the lower half of the
master link automatically centers
the load, increasing the safety in
every lift.
Designed for crane hooks DIN 15401 and 15402. Designed for use with CL, CLD, CG and CGD. 3- and 4-leg chain slings require CLD / CGD.
Fulfills requirements in:
EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015
All dimensions in mm.
| Part no | Code | WLL t (SF 5:1) EN 1677-4 | WLL t (SF 5:1) ASTM A-952 | For chain mm, 1-leg | For chain mm, 2-leg | For chain mm, 3-4-leg | L | E | D | DIN 15401 | DIN 15402 | Weight kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z101262 | MFH-1310-10 | 7.5 | 8.0 | 13 | 10 | 8 | 230 | 125 | 22 | ≤ 12 | ≤ 16 | 2.1 |
| Z101263 | MFH-1613-10 | 10.0 | 13.6 | 16 | 13 | 10 | 250 | 135 | 28 | ≤ 12 | ≤ 16 | 3.67 |
| Z101264 | MFH-2016-10 | 17.0 | 20.6 | 20 | 16 | 13 | 280 | 135 | 32 | ≤ 16 | ≤ 20 | 5.27 |
| Z101265 | MFH-2220-10 | 28.0 | 30.9 | 22 | 20 | 16 | 320 | 175 | 40 | ≤ 25 | ≤ 32 | 9.75 |
| Z101266 | MFHW-2220-10 | 25.0 | 25.0 | 22 | 20 | 16 | 355 | 225 | 40 | ≤ 50 | ≤ 63 | 11.08 |
