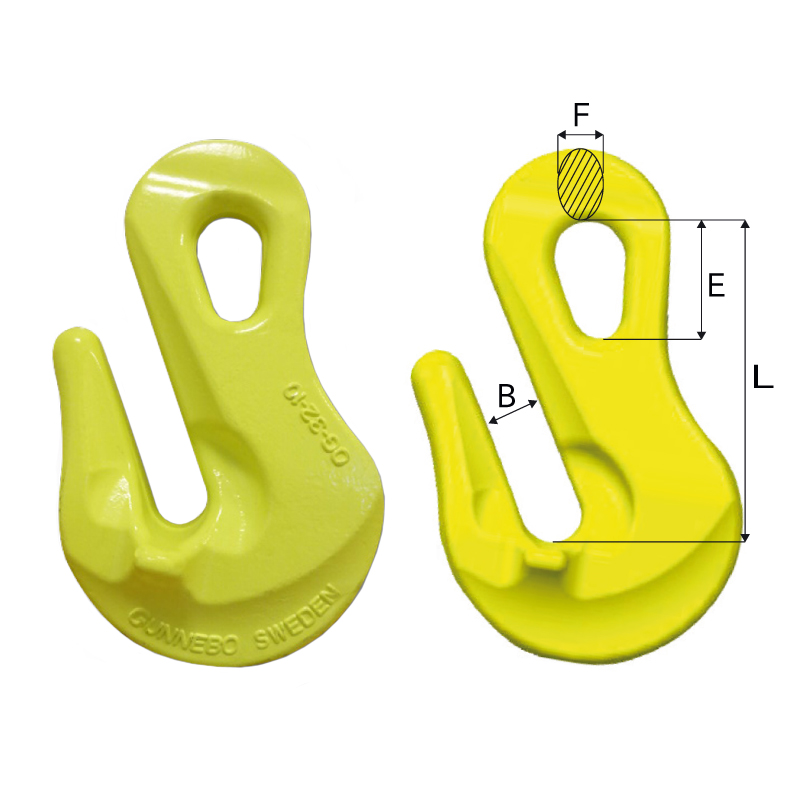

Eye shortening hook. No reduction of working load limit, thanks to supporting lugs on either side of hook to prevent chain link deformation.
Fulfills requirements in:
EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
Safety factor: 4:1
All dimensions in mm
| Part no | Code | WLL t | L | B | E | F | Weight kgs |
|---|---|---|---|---|---|---|---|
| Z101296 | OG-7/8-10 | 2.6 | 65 | 10 | 17 | 10 | 0.322 |
| Z101297 | OG-10-10 | 4.0 | 85 | 12 | 20 | 12 | 0.641 |
| Z101298 | OG-13-10 | 6.8 | 104 | 16 | 26 | 16 | 1.532 |
| Z101299 | OG-16-10 | 10.3 | 131 | 20 | 32 | 19 | 2.69 |
| Z101300 | OG-20-10 | 16.0 | 167 | 26 | 41 | 23 | 5.96 |
| Z101301 | OG-22-10 | 20.0 | 187 | 26 | 46 | 32 | 8.3 |
| Z101302 | OG-26-10 | 27.3 | 228 | 32 | 55 | 38 | 14.01 |
| Z101303 | OG-32-10 | 40.0 | 229 | 40 | 50 | 27 | 20.7 |
